Transforming an ordinary wall into a captivating focal point, a floor-to-ceiling plate rack wall offers both elegant decorative storage and a brilliant solution for challenging spaces. This DIY project is highly customizable, allowing you to create a unique display that perfectly complements any room size or aesthetic. Imagine a bespoke built-in feature that not only showcases your cherished collections but also adds architectural interest and sophisticated charm to your home.
I’ve always admired the timeless appeal of wall plate racks. In my previous home, I proudly displayed my collection of white plates, pitchers, and platters in a grand china hutch, and the need for additional display space never really arose. However, life changes, and so do our homes and decorating needs.
After moving into my current home and living without a dedicated dining room – and consequently, without that beloved hutch – for five years, I began to truly miss seeing my cherished collection. My kitchen offered some open shelving where I could place a few white pitchers and soup tureens, but my beautiful platters remained tucked away, hidden from view in my china closet. This sparked a desire to find a creative and visible way to bring these pieces back into my daily life and display them proudly.

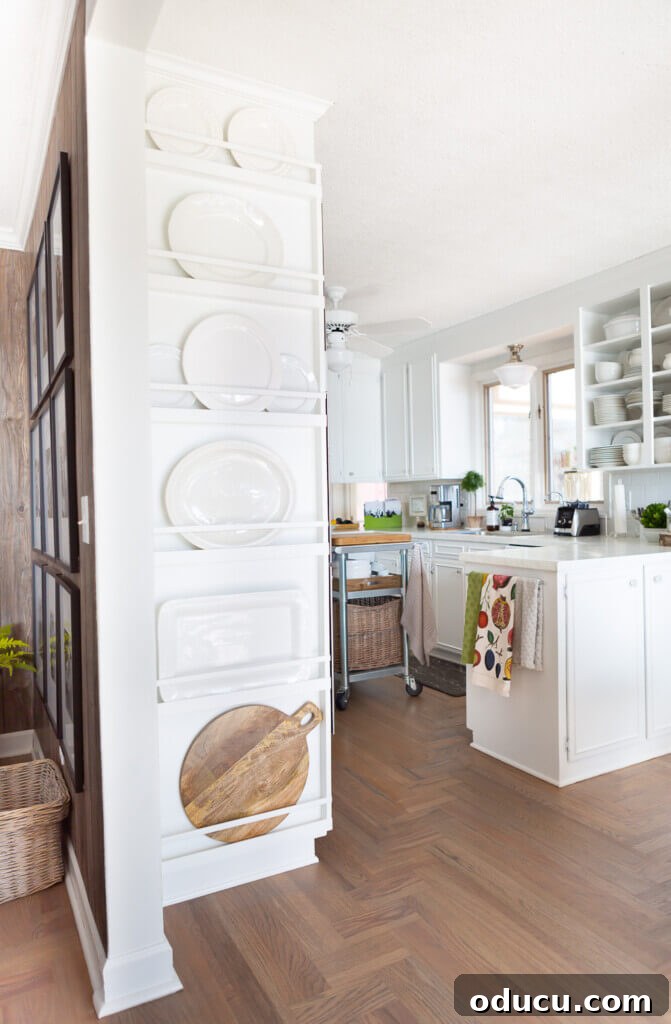

Fortunately, my home presented the perfect opportunity: a narrow, yet tall, wall ideal for a stunning floor-to-ceiling plate rack. I made the firm decision to embark on this DIY project, knowing it would not only provide a perfect home for my decorative plates but also enhance the overall aesthetic of my kitchen area. It was time for a change, and a built-in plate rack offered the ideal blend of functionality and style.

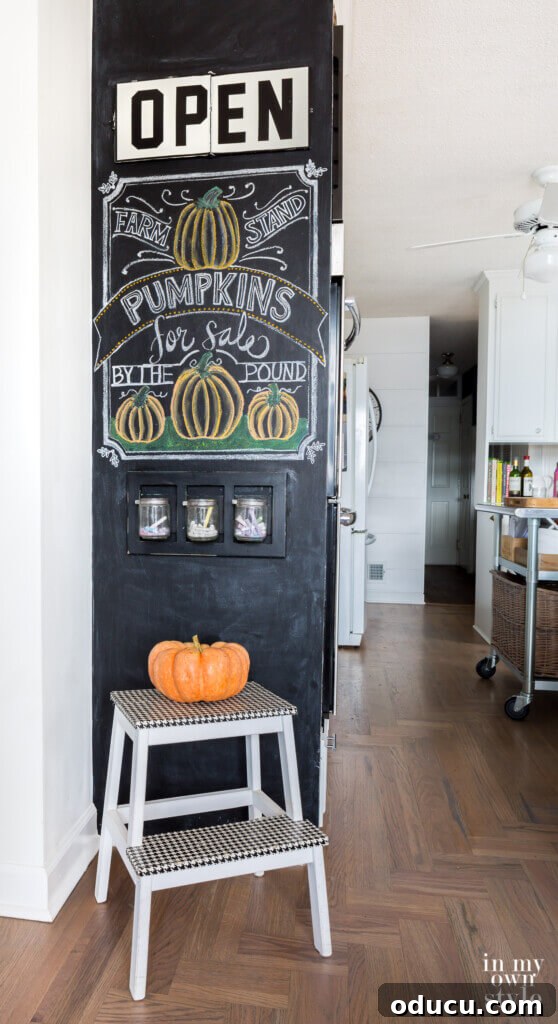

This meant saying a fond farewell to my chalkboard wall. While I thoroughly enjoyed its charm and versatility for several years, embracing change in home decor is often a positive step. Our lives evolve, and so do our personal tastes and functional requirements for our living spaces. This transition felt like a natural progression, making way for a more sophisticated and enduring display solution.
For those wondering about the process, removing the chalkboard paint was surprisingly straightforward. I simply rolled on two coats of KILZ Premium primer, followed by two coats of Sherwin Williams semi-gloss paint in “Pure White.” This is the same elegant shade used on my kitchen cabinets, ensuring a cohesive and bright look. This transformation alone instantly brightened the space and provided a fresh canvas for my new project.

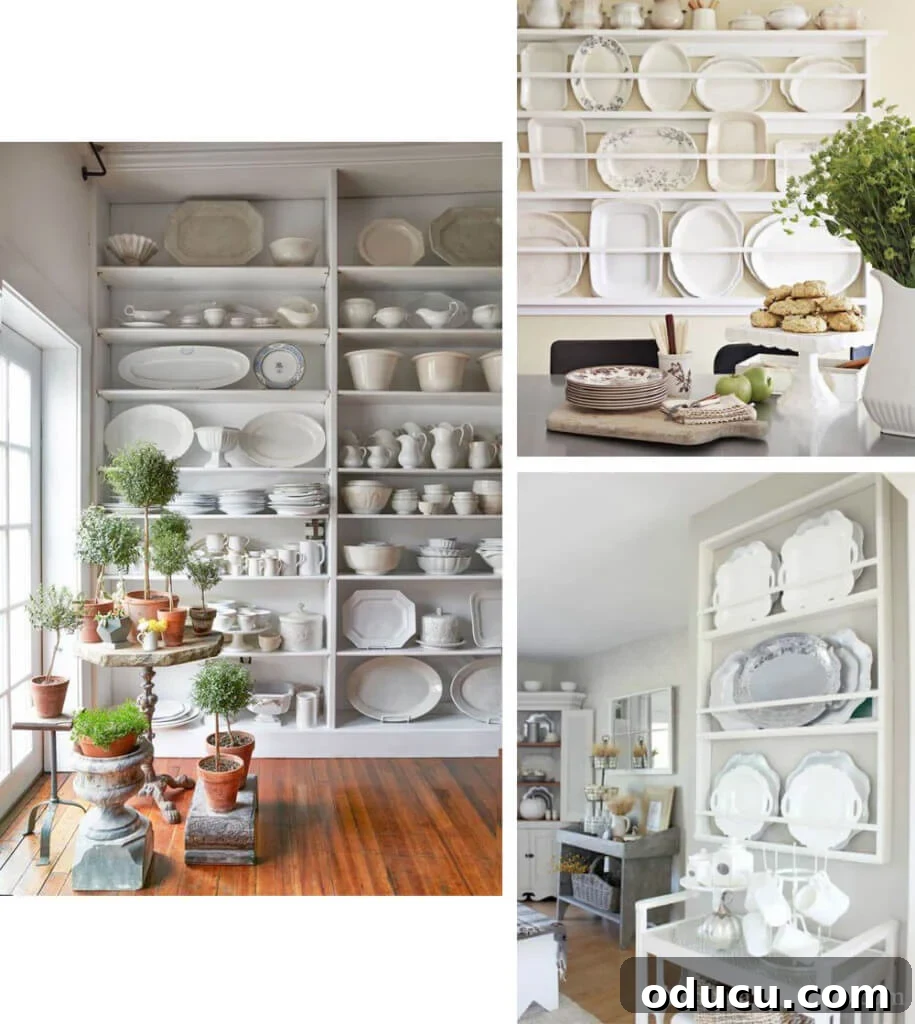

The beauty of creating a plate rack wall lies in the sheer variety of design possibilities. A quick search for “plate rack walls” on Google or Pinterest will reveal a breathtaking array of ideas, offering endless inspiration for every style and preference. From rustic farmhouse designs to sleek modern interpretations, the options are truly boundless, allowing you to tailor your project to your unique vision and home decor.
For my personal design, I envisioned a simple yet classic wooden plate rack, painted crisp white to create a light and airy feel. It was crucial that the design would securely hold my plates, blending functionality with aesthetic appeal. I opted for a “two guard style” system, which involves a strip of lattice molding placed directly over each shelf, complemented by a sturdy safety rail positioned 2 inches above the lattice. This double protection ensures that plates are displayed beautifully and safely.

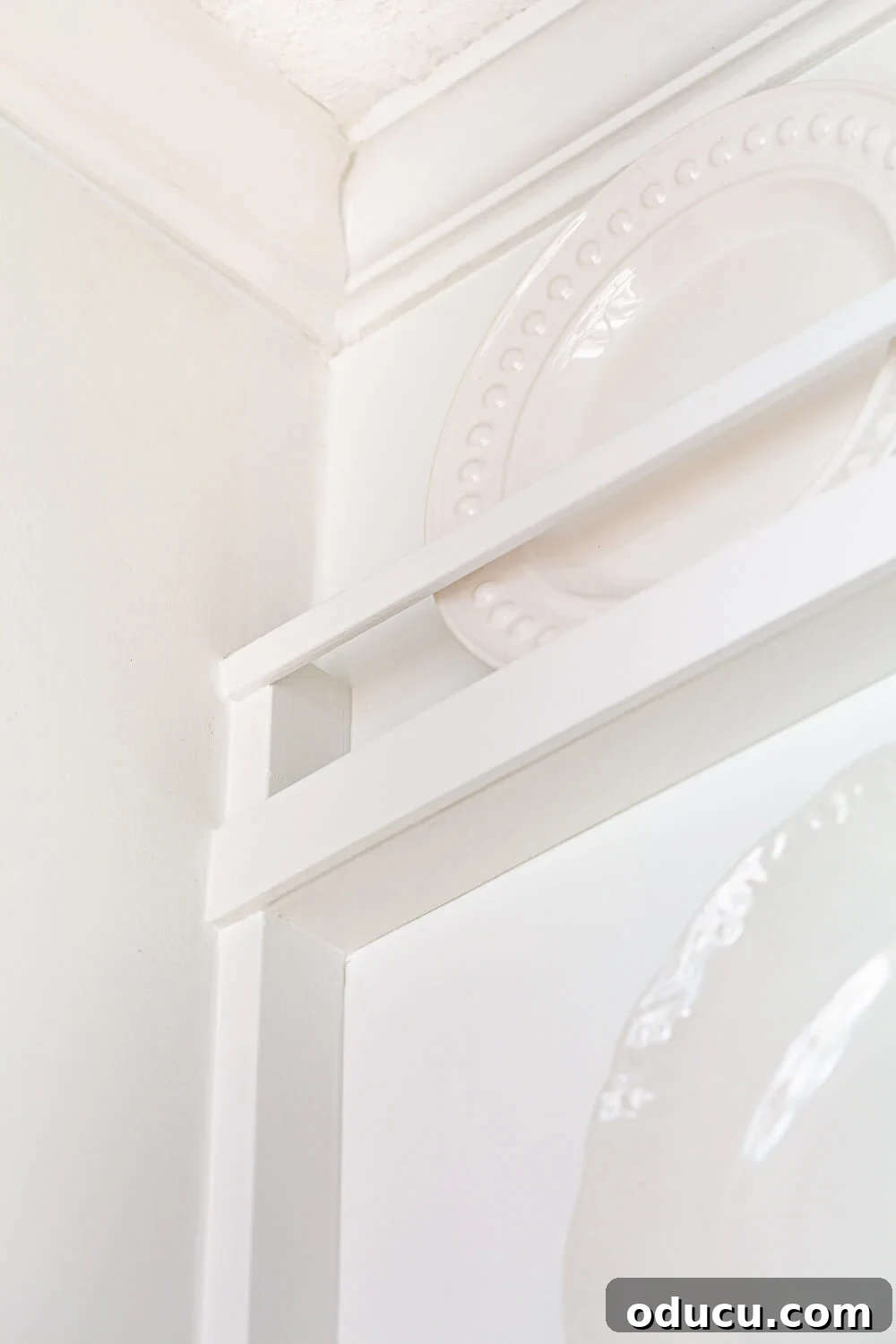

Another design choice I made was to stop the vertical sides of the frame at the top shelf’s safety rail. This decision was influenced by the existing crown molding at my ceiling line, which provided a natural stopping point and contributed to the built-in feel. Had there been no crown molding, I would have extended the rack all the way to the ceiling, creating an even more dramatic, seamless effect. This flexibility in design allows for adaptation to various architectural features of your home.
How to Build a Stunning Floor-to-Ceiling Plate Rack Wall: A Comprehensive DIY Guide
Creating a beautiful and functional built-in plate rack for your home is a rewarding DIY project that can dramatically enhance any space. This guide will walk you through the process of designing and constructing your very own floor-to-ceiling plate rack, transforming an ordinary wall into an extraordinary display.
Essential Design Considerations for Your Custom Plate Rack Wall
Before you start cutting wood and assembling, careful planning is key to a successful and satisfying outcome. Take some time to think through these critical design elements:
Where to Place Your Built-In Plate Rack?
The beauty of a custom plate rack is its adaptability. It can truly go on any wall you desire to revitalize. In my case, the narrow wall situated between my kitchen and living room proved to be the ideal canvas. This often-overlooked space was transformed from a blank void into a purposeful and aesthetically pleasing feature. I encourage you to thoughtfully survey your own home; look for walls that might seem awkward or underutilized. Perhaps a wall in your dining room, kitchen, a long hallway, or even a spacious entryway could be the perfect spot for a floor-to-ceiling plate rack. Consider areas where you want to add visual interest, character, or simply free up cabinet space.
Determining Your Shelf Depth
The depth of your shelves is a crucial decision that will directly impact what you can display. Begin by visualizing the items you intend to showcase. Do you envision elegant dinner plates layered one behind the other, or prefer a single row of plates allowing for more diverse objects? Beyond plates and platters, think about incorporating other decorative elements such as cherished cookbooks, rustic cutting boards, classic candlesticks, or even small potted plants. Once you have a clear idea, gather these items and measure their dimensions. This practical step will guide you in selecting wood that provides the appropriate shelf depth, ensuring everything fits perfectly. I personally aimed for a simple, clean-lined look and found that shelves made from 2-inch wide boards (often referred to as 1x3s in lumber terms, which are typically 2.5 inches wide) provided ample depth for my plates while maintaining a sleek profile. This allows for customization, ensuring your rack is perfectly tailored to your display needs.
Optimizing Distance Between Shelves for Visual Appeal and Functionality

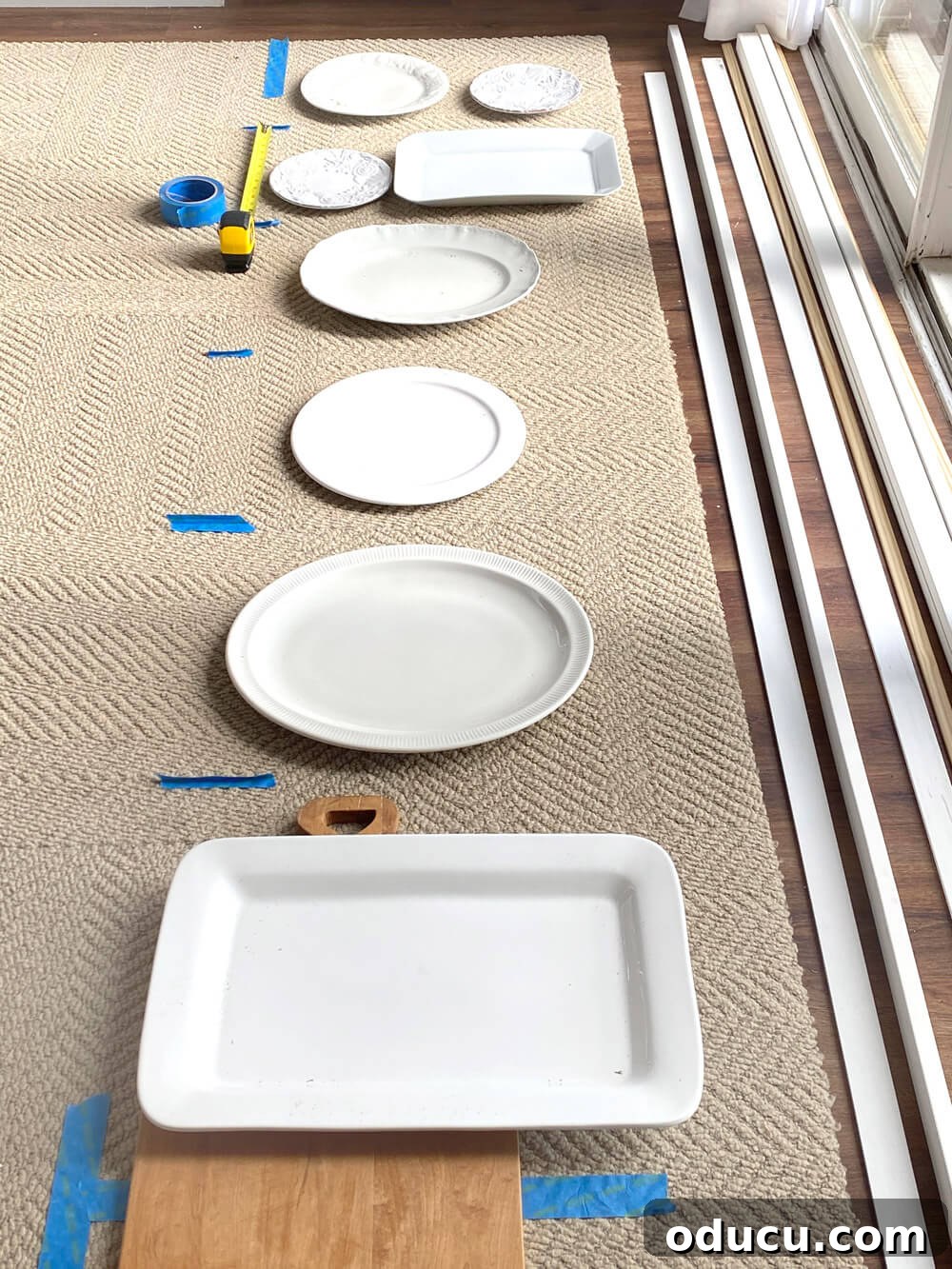

Unlike pre-made units, a custom plate rack allows you to dictate the spacing between shelves, offering immense creative freedom. While many plate racks feature uniform spacing, designing your own means you can vary these distances for both aesthetic and practical reasons. Again, the items you plan to display should be your primary guide. Larger decorative pieces might require more vertical clearance on lower shelves, while smaller plates or accent items can be comfortably housed on more closely spaced upper shelves. For my specific rack, I favored a visually appealing design where the space gradually decreases from bottom to top. I allocated 17 inches between the bottom two shelves to accommodate larger platters, and then progressively reduced the spacing by one inch for each subsequent shelf moving upwards: 17″ – 17″ – 16″ – 15″ – 14″ – 13″. This creates a dynamic, engaging visual flow while ensuring every item has its rightful place.
Choosing Your Plate Guard Rail Style
The guard rails are not just for security; they also contribute significantly to the overall style of your plate rack. You have a variety of materials and designs to choose from. Common options include slender lattice strips, delicate screen molding, classic wooden dowels, or even industrial-chic metal pipes for a more contemporary look. Consider the aesthetic of your home and the desired feel of the rack. I personally chose a combination of a 1-1/4″ lattice strip directly on the shelf and a 1″ screen molding as a safety rail 2 inches above it, offering both visual interest and robust plate protection.
Securely Attaching Your Plate Rack to the Wall
The method of attachment is crucial for safety and stability. After extensive research on Pinterest, I determined that for my specific wall, which was hollow and lacked studs in the desired area, building the main frame on the floor first and then attaching it to the wall was the most secure approach. This method ensured a robust, built-in appearance. However, if your wall has readily available studs or if you’re constructing a smaller, less imposing rack, you might opt for a simpler hanging method using heavy-duty picture hangers or French cleats. Always prioritize structural integrity, especially when displaying valuable or heavy items.
Step-By-Step: Constructing Your Custom Plate Rack Wall
My wall, unfortunately, was hollow, meaning traditional stud-mounting wasn’t an option for the entire structure. To ensure maximum stability and a true built-in feel, I decided to construct the outer frame on my worktable. Once this sturdy frame was complete, I carefully moved it to the wall and secured it with long wood screws directly into the adjacent stud-filled walls for unparalleled support. Only after the frame was perfectly plumb and secure did I proceed to add the individual shelves, ensuring each one was level before final attachment.
Optional Construction Method: For walls with easily accessible studs, you might find it simpler to build the entire frame directly in place on the wall, attaching each piece as you go. Always assess your wall’s structure before beginning.
Materials and Tools You’ll Need:
To successfully complete this built-in plate rack project, gather the following supplies:
- 1 x 2 primed boards: These will form the main frame and shelves. Primed wood saves time on painting.
- 1 – 1/4″ primed lattice strip: Used for the primary plate guard rail on each shelf.
- 1 inch screen molding: Choose flat, not ribbed, for the safety rail above the lattice.
- Mitre or circular saw: Essential for precise and clean cuts.
- Tape Measure: For accurate measurements of your wall and wood pieces.
- 2″ and 3″ wood screws: For securely attaching frame components and mounting to the wall.
- Brad nailer and 2-inch brad nails: For a quick and nearly invisible finish when attaching shelves and rails. Alternatively, a hammer and finishing nails.
- Nail punch: (If using hammer and nails) to countersink nail heads below the surface for a smooth finish.
- Bubble level: Crucial for ensuring all shelves are perfectly horizontal.
- Paint: Sherwin Williams Pure White – semi-gloss (or your desired color and finish) to match your existing trim or decor.
- 1″ angled paint brush: For detailed work and edges.
- Small paint roller: For smooth, even coverage on larger surfaces.
- Spackle: To fill screw and nail holes for a seamless appearance.
- Caulk: To seal gaps along edges and give a truly built-in finish.
- Painter’s tape: For crisp paint lines and protecting adjacent surfaces.
- 100-grit sandpaper: To smooth rough edges and prepared surfaces for painting.
Time needed: 5 hours
Detailed Steps to Create a Floor-to-Ceiling Plate Rack Wall with a Custom Built-In Aesthetic
- Step 1: Precisely Measure Your Wall Space and Plan Shelf Layout
Begin by carefully measuring the exact dimensions of the wall where you envision your new plate rack. This includes height from floor to ceiling (or crown molding) and the width of the intended area. Next, determine the total number of shelves you wish to incorporate. A highly effective method for this is to gather all the plates, platters, and other items you plan to display. Lay them out on the floor or a large table, experimenting with different arrangements and spacing. This visual exercise helps you gauge the required shelf height and depth for each item. For example, I wanted larger, statement pieces at the bottom of my rack and gradually smaller items towards the top. This led me to space the bottom two shelves 17 inches apart, with subsequent shelves decreasing by one inch each. This creates a visually balanced and functional display tailored to your collection.

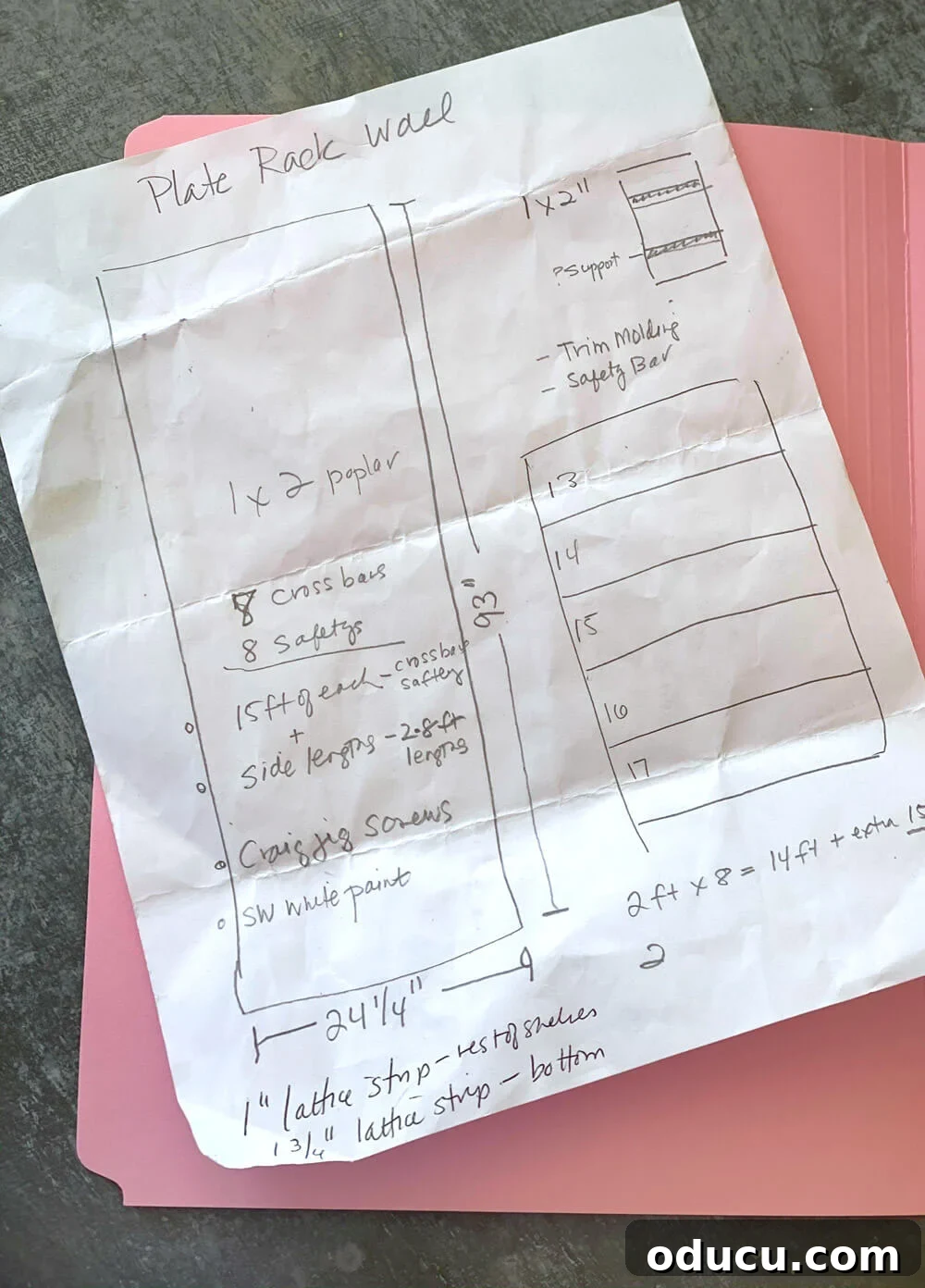

- Step 2: Sketch a Detailed Plan for Material Calculation
Once you have your precise wall measurements, desired number of shelves, and preliminary spacing, translate your vision into a detailed sketch on paper. This drawing should include all dimensions: the overall height and width of the rack, the exact spacing between each shelf, and the length of each individual wood piece. This crucial step not only solidifies your design but also allows you to accurately calculate the total amount of wood, molding, and other materials you’ll need to purchase, preventing unnecessary trips to the hardware store and ensuring efficiency in your project.
- Step 3: Determine Vertical Wood Height for Seamless Integration
When calculating the precise lengths for your vertical outer frame pieces, it’s vital to account for the total height required, ensuring that the top safety rail will be perfectly flush with the very top of these vertical elements. This careful measurement guarantees a neat, finished look, especially if your rack is designed to meet existing crown molding or extend fully to the ceiling. Double-check your calculations to avoid discrepancies that could affect the overall integrity and aesthetic of your built-in feature.
- Step 4: Assemble the Main Frame on a Flat Surface

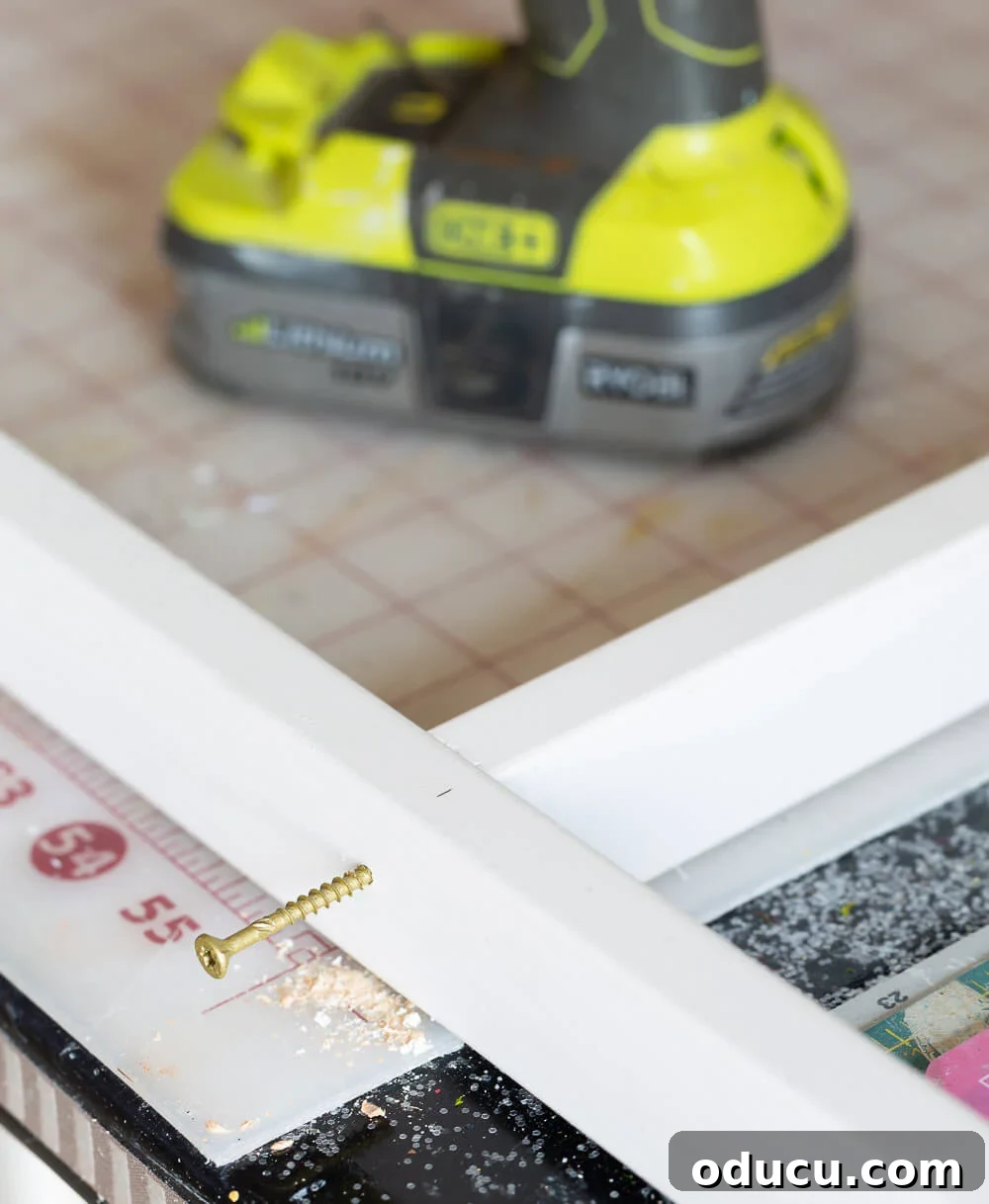

On a clean, flat work surface (like your garage floor or a large workbench), lay out the pre-cut 1 x 2 boards that will form the outer frame of your plate rack. Carefully assemble these pieces to create the full vertical and horizontal perimeter. Next, measure the exact distance between the inside edges of your left and right vertical frame pieces. Cut two more 1 x 2s to this precise length: one for the very bottom shelf and another for the topmost shelf. Attach one end of each of these shelf pieces to the main frame. The opposite end of each shelf will remain unattached for now, as it will be secured to the wall after the main frame is mounted, allowing for precise leveling during installation. This staggered approach simplifies the mounting process and ensures a perfectly level final product.

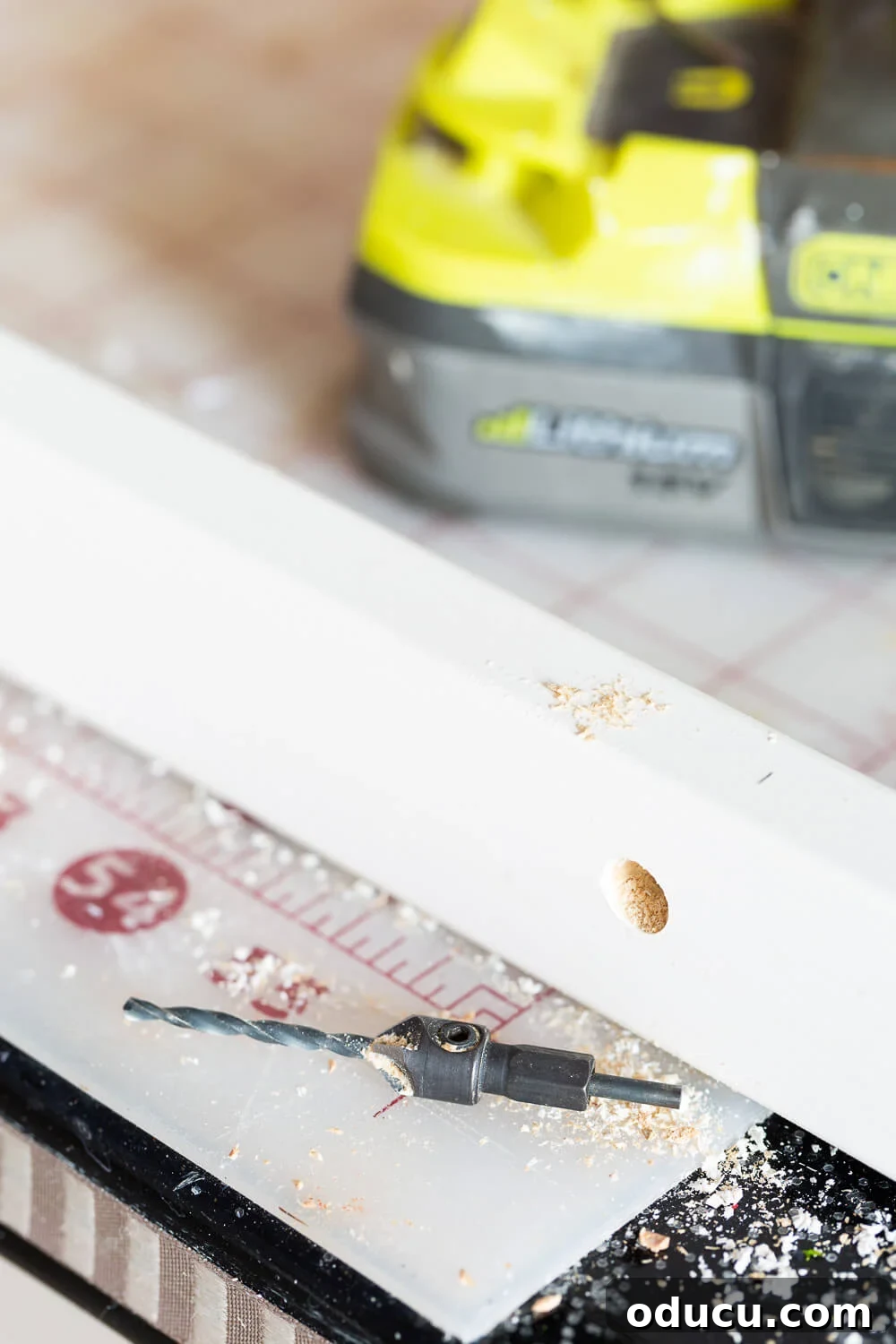

- Step 5: Utilize a Countersinking Drill Bit for a Flawless Finish
When joining the frame components and shelves with wood screws, it is highly recommended to use a countersinking drill bit. This specialized bit creates a perfectly tapered hole that allows the screw heads to sit flush with or slightly below the surface of the wood. This critical step prevents screw heads from protruding, ensuring a smooth, professional finish that is easy to spackle over and paint, making your built-in plate rack look seamlessly integrated into your wall. This attention to detail significantly elevates the final appearance.
- Step 6: Repeat Assembly for All Initial Shelf Attachments

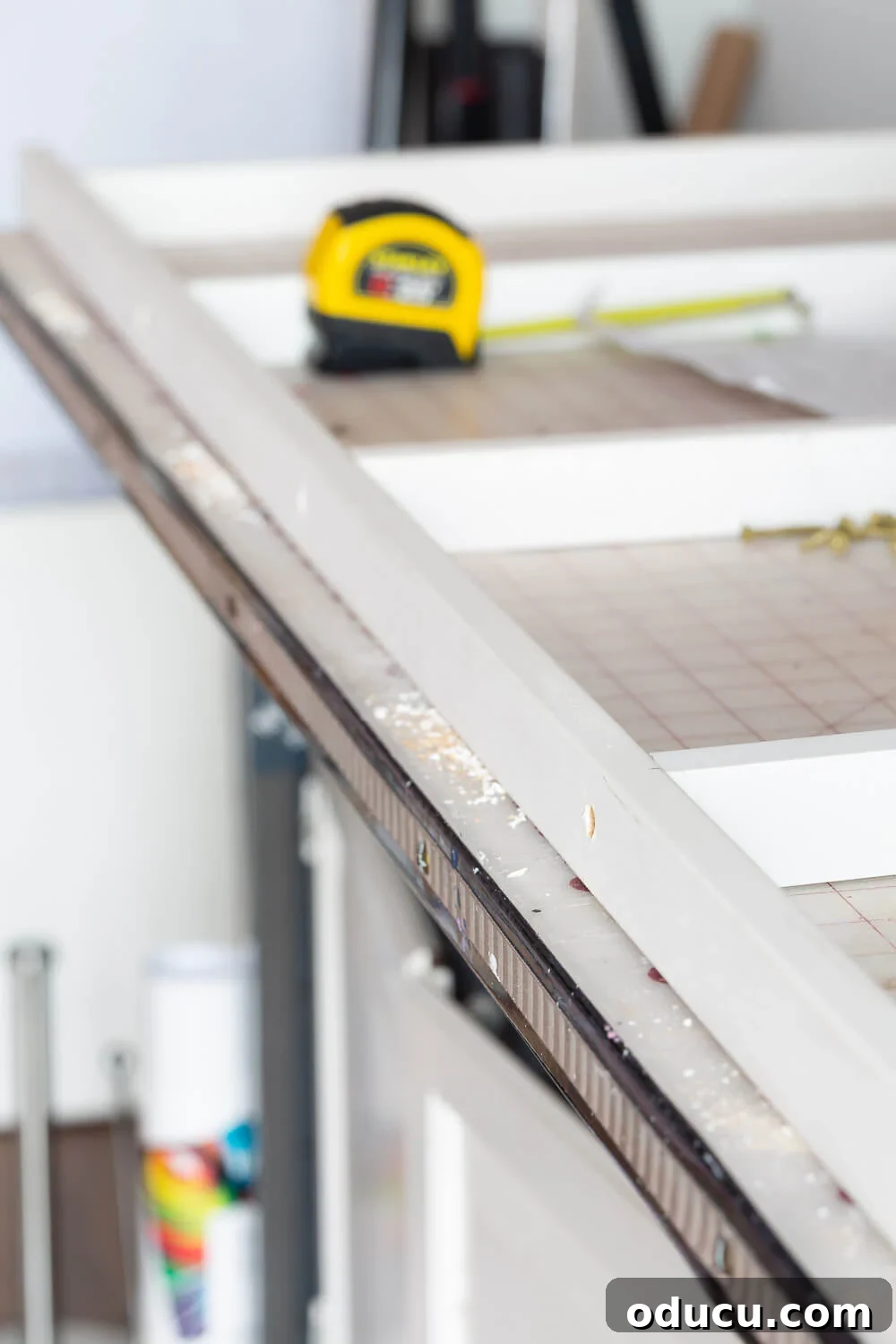

Continue the process of cutting and attaching the initial end of each shelf to the main frame, following the spacing measurements determined in your plan. Ensure that each connection is secure using wood screws and your countersinking drill bit. This systematic approach allows you to build a robust and well-structured base before transferring it to the wall, making the subsequent installation much smoother and more precise. Your goal at this stage is to have a complete, sturdy outer frame with one end of each shelf securely fastened, ready for wall mounting.

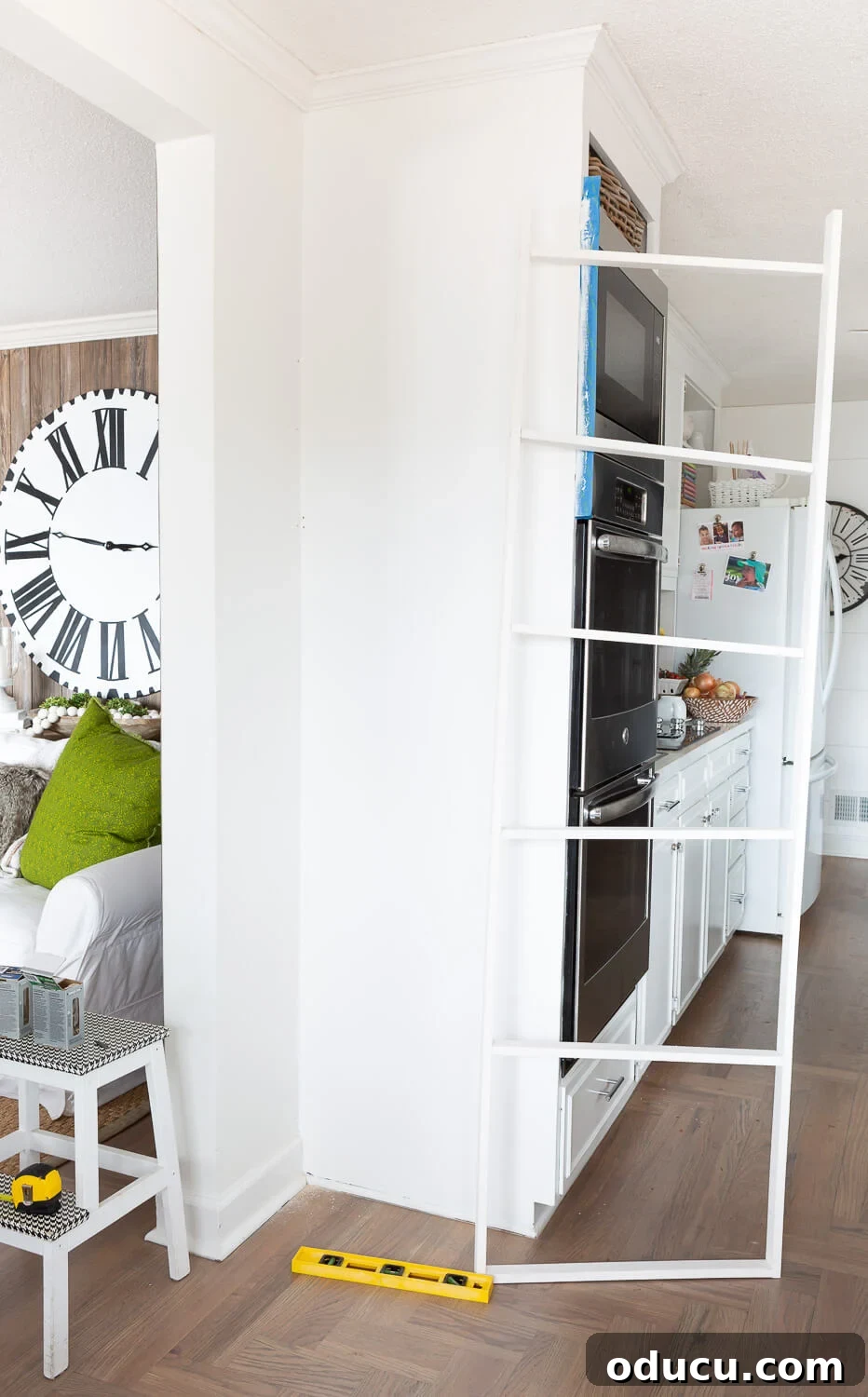

- Step 7: Carefully Move and Secure the Frame to the Wall
With the outer frame and the initial ends of your shelves assembled, carefully lift and position the entire structure against the intended wall. This is often a two-person job due to the size and weight. Once in place, use your bubble level to ensure the frame is perfectly plumb and level before making any permanent attachments. This precision is critical for a professional, built-in appearance. Secure the frame to the wall using appropriate screws, ideally fastening into studs where possible, or using heavy-duty wall anchors for hollow walls. In my case, I anchored into adjacent stud-filled walls for optimal stability.

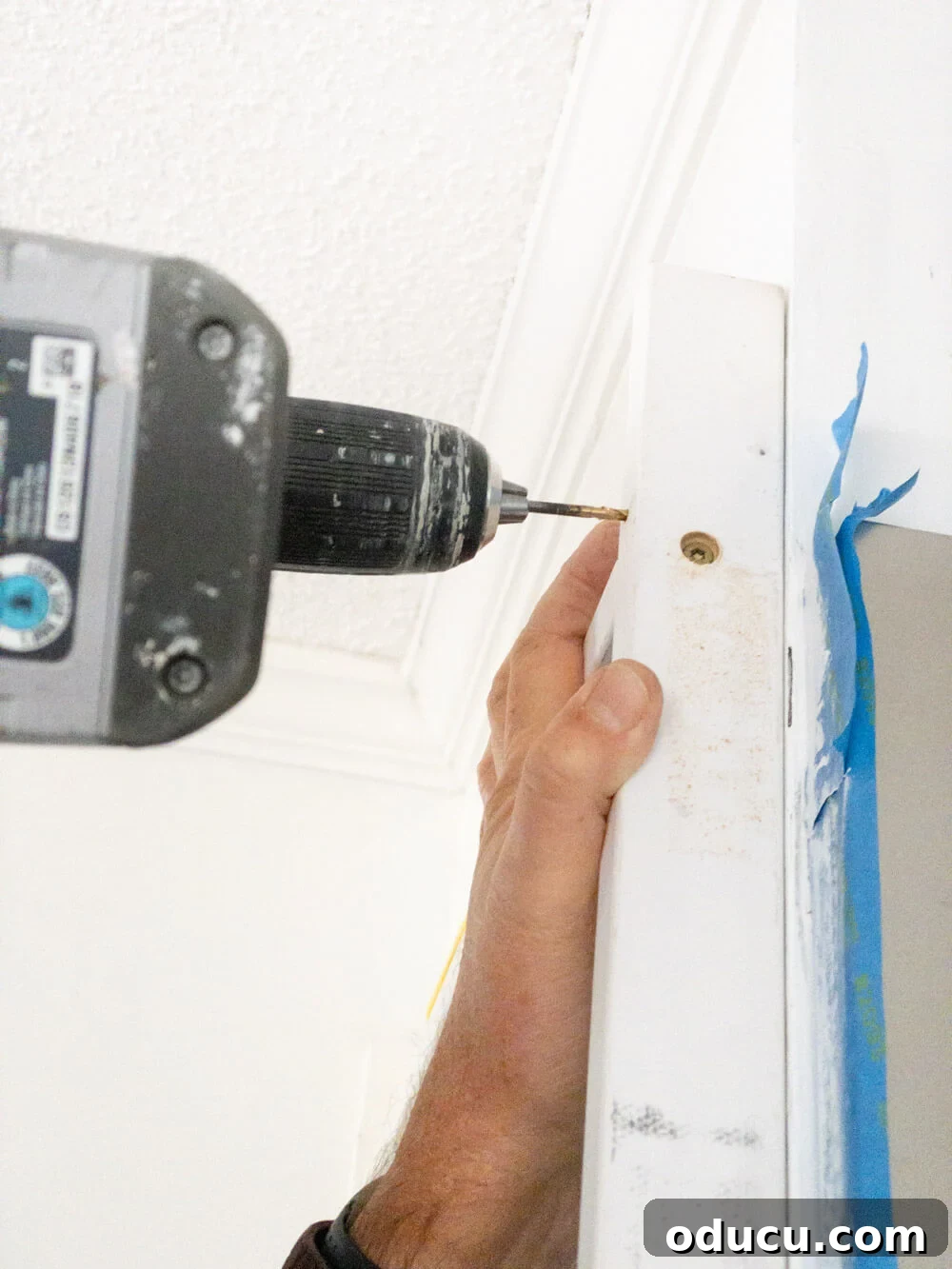

- Step 8: Use Robust Wood Screws for Wall Attachment
To ensure your plate rack is securely fastened and can safely hold your collection, use substantial wood screws for attachment to the wall. Depending on your wall type and the frame’s weight, 2-inch and even 3-inch wood screws are recommended. Drive these screws through the vertical frame pieces and into wall studs for the strongest possible hold. If studs are not accessible, use heavy-duty toggle bolts or expanding anchors designed for significant weight. Always pre-drill pilot holes to prevent wood splitting and ensure a clean, strong connection. This step is paramount for the long-term stability and safety of your built-in display.
- Step 9: Attach Horizontal Shelves with Precision Leveling

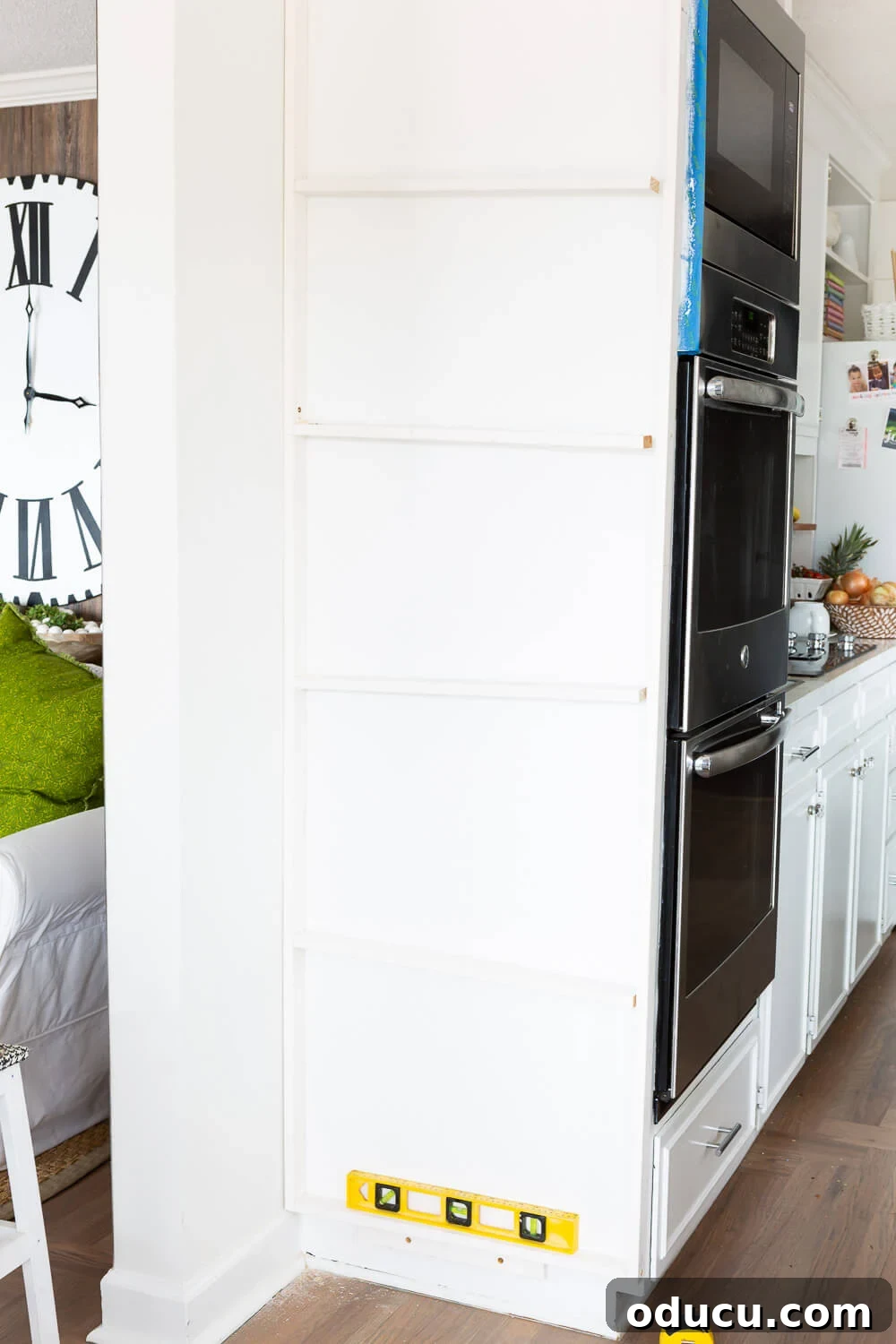

With the main frame firmly mounted, it’s time to install the remaining ends of your horizontal shelves. Take each pre-cut shelf piece and position its free end within the frame, aligning it with its previously attached end. Before securing, place your bubble level on the shelf to confirm it is perfectly horizontal. Once level, securely attach the shelf to the wall frame using brad nails or finishing nails. For a truly professional finish, remember to countersink all nail heads using a nail punch, ensuring they are below the wood surface. This meticulous attention to leveling and finishing ensures both the aesthetic appeal and the functionality of your plate rack.
- Step 10: Spackle, Caulk, and Paint for a Built-In Look

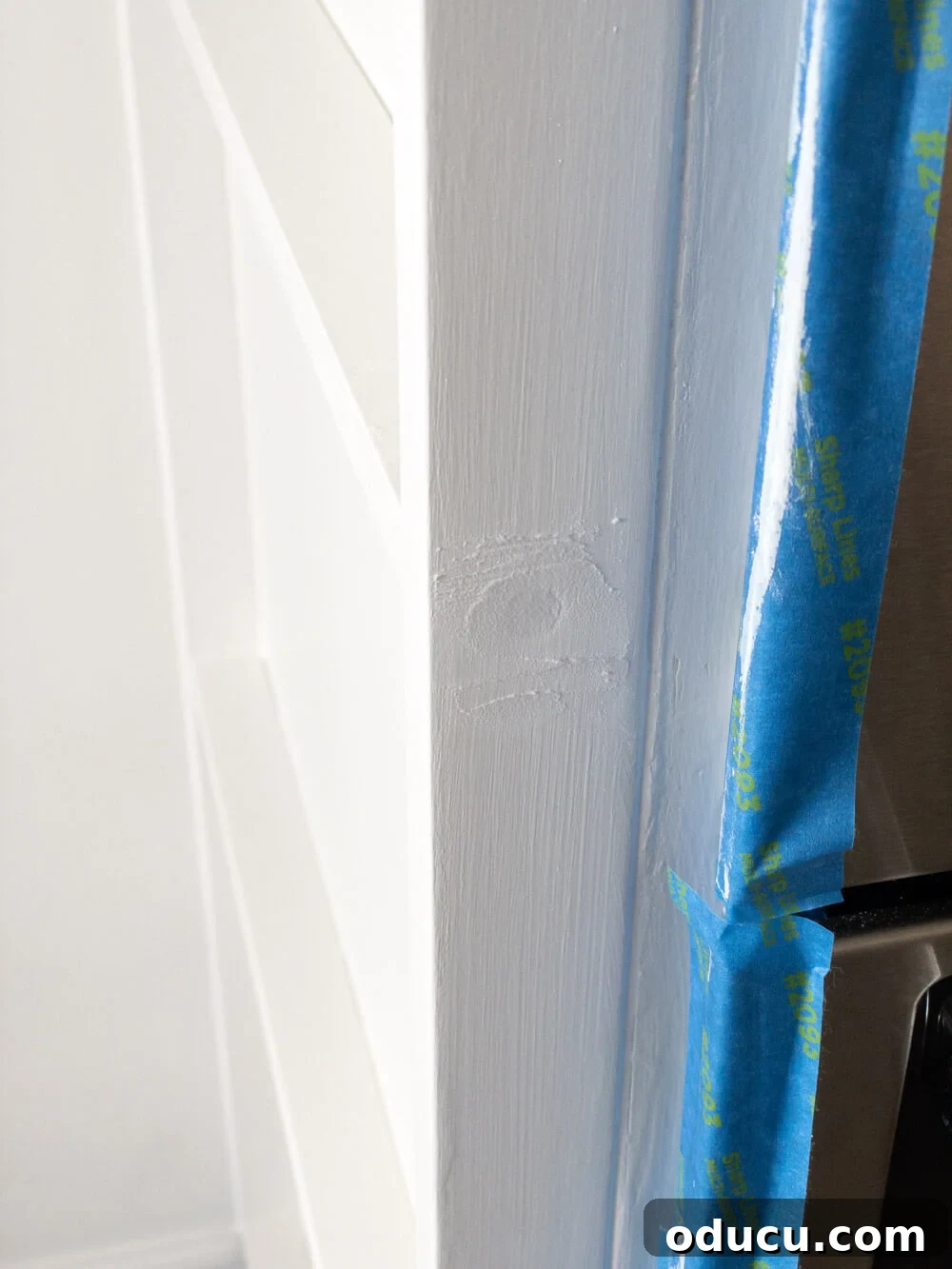

Once all the structural elements are in place, it’s time for the finishing touches that transform your project from a construction into a seamless built-in feature. First, apply spackle generously over all countersunk screw and nail holes, filling them completely. Allow the spackle to dry thoroughly, then sand smooth until the surface is perfectly flush. Next, apply a bead of paintable caulk along all seams where wood meets wood, and where the rack meets the wall. This step closes any small gaps, creating a truly integrated appearance. Once the caulk is dry, paint the entire plate rack frame and shelves with your chosen color and finish, ensuring even coverage. Allow ample drying time according to paint manufacturer instructions before proceeding.

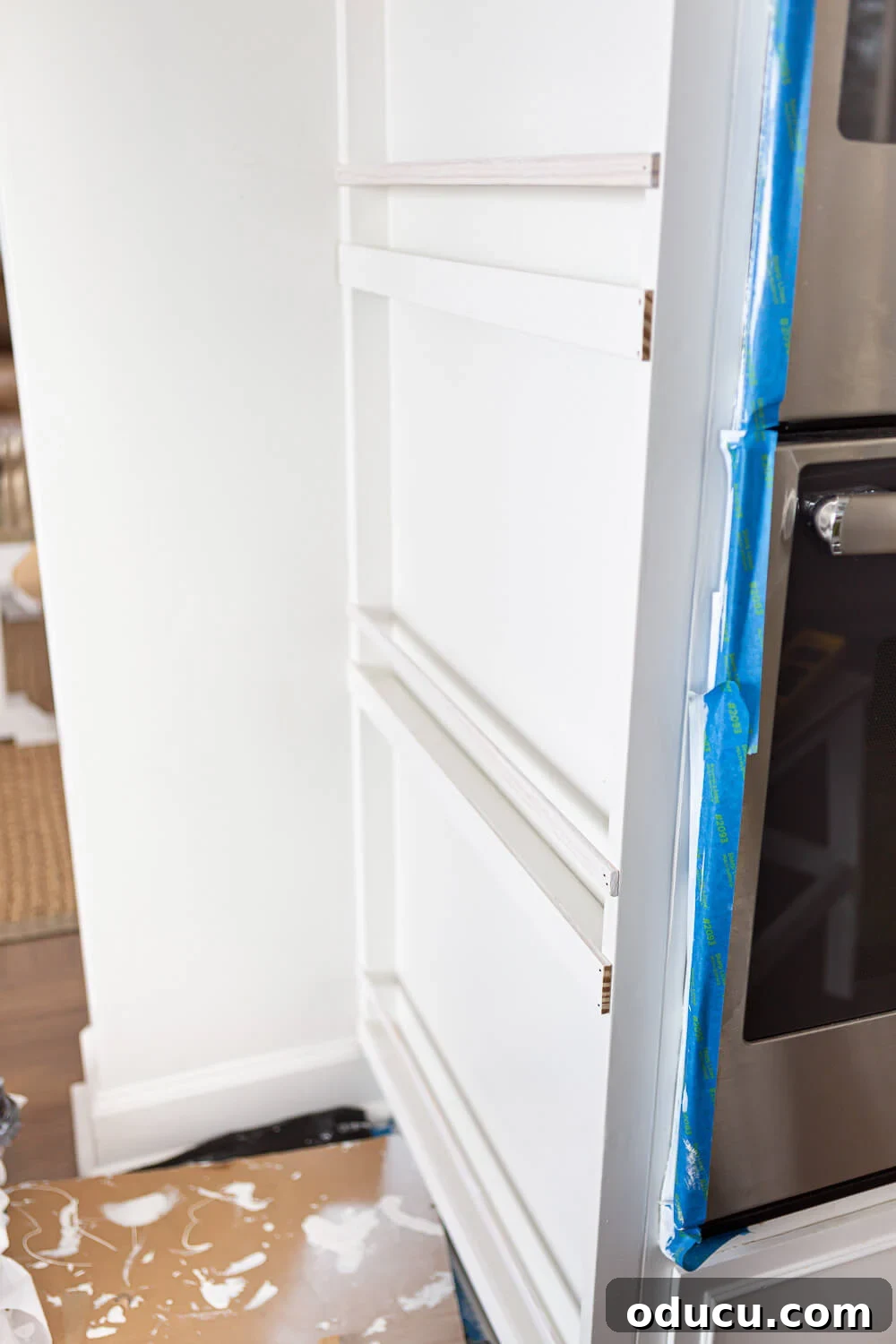

- Step 11: Precisely Measure and Cut Guard Rails

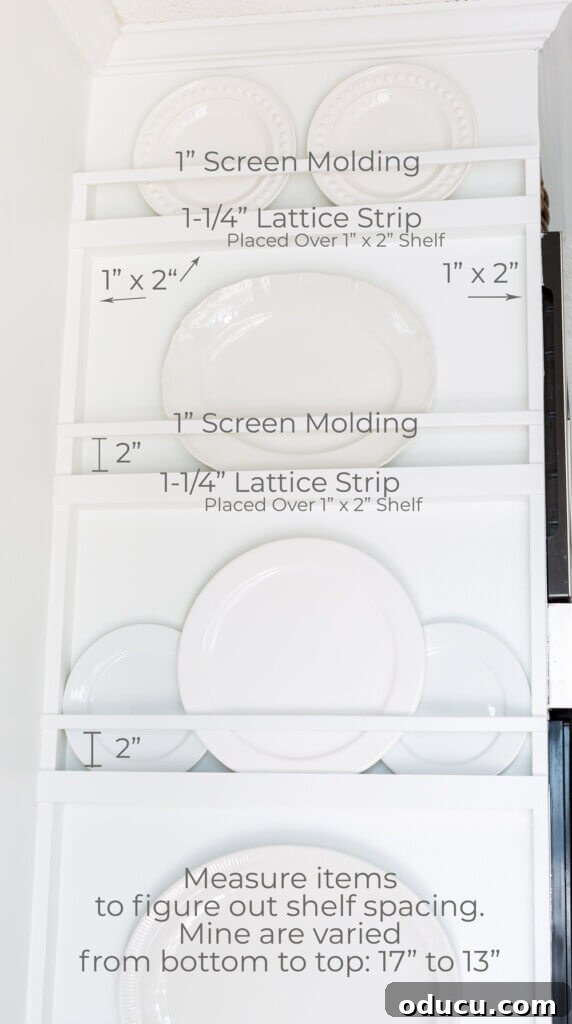

Now, prepare your essential guard rails. To accurately determine the length for both the front guard piece (lattice) and the safety rail (screen molding), measure the exact distance from the outside edge of one vertical frame piece to the outside edge of the other. Cut one piece of the 1-1/4″ lattice strip and one piece of the 1″ screen molding to this precise measurement for each shelf. Ensure all cut edges are sanded smooth to prevent splinters and provide a clean finish. These rails are pivotal for both aesthetics and the security of your displayed items.

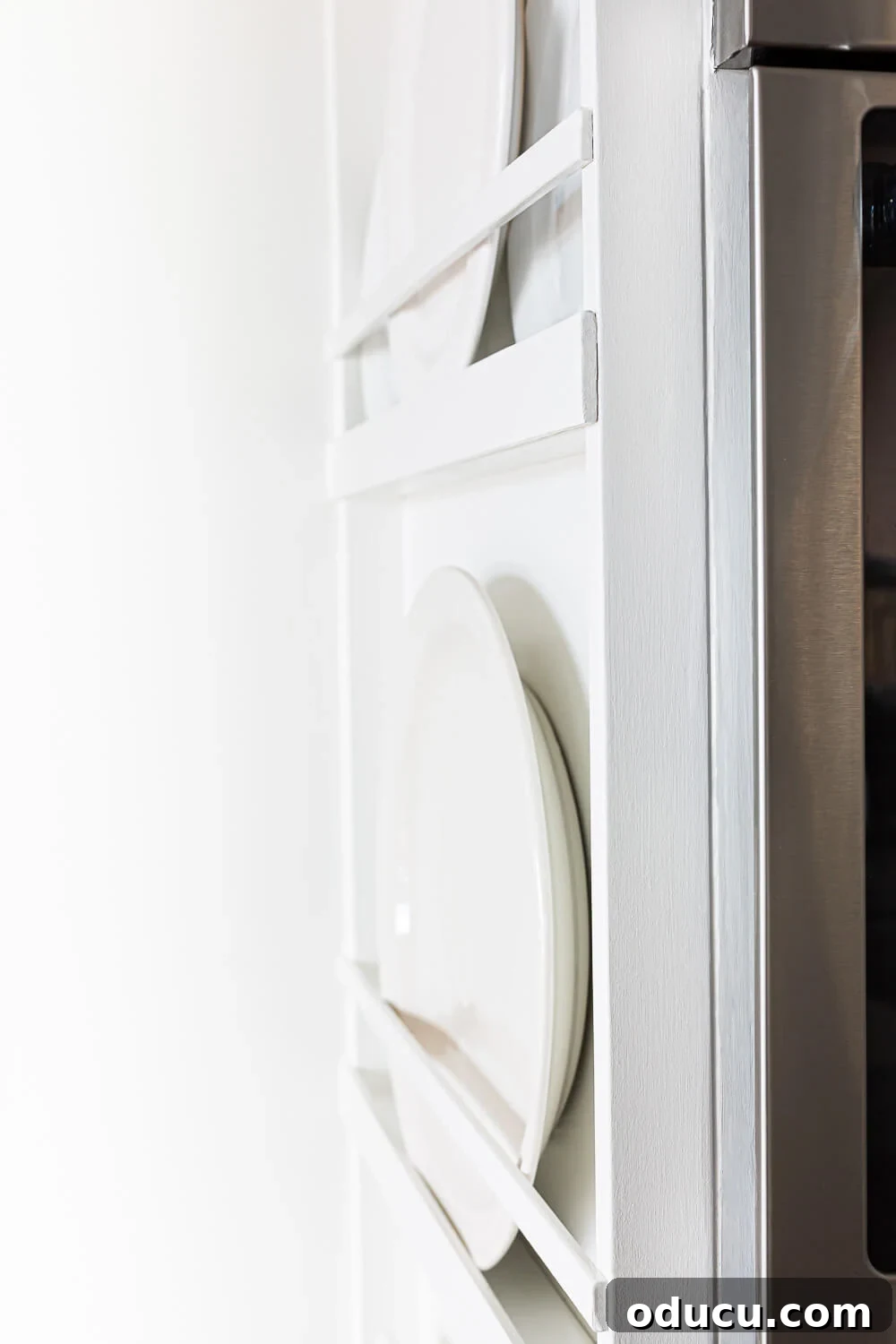

- Step 12: Securely Attach the Front Guard Piece (Lattice)
Take the pre-cut 1-1/4″ lattice strip for the first shelf. Position it carefully over the front edge of the horizontal 1 x 2 shelf. Ensure that the bottom edge of the lattice strip is perfectly flush with the bottom edge of the horizontal shelf itself. This precise alignment is key for both visual appeal and proper plate support. Secure the lattice strip to the shelf using finishing nails, countersinking them if necessary for a smooth surface. Repeat this exact process for every shelf on your plate rack, ensuring consistent placement and security.

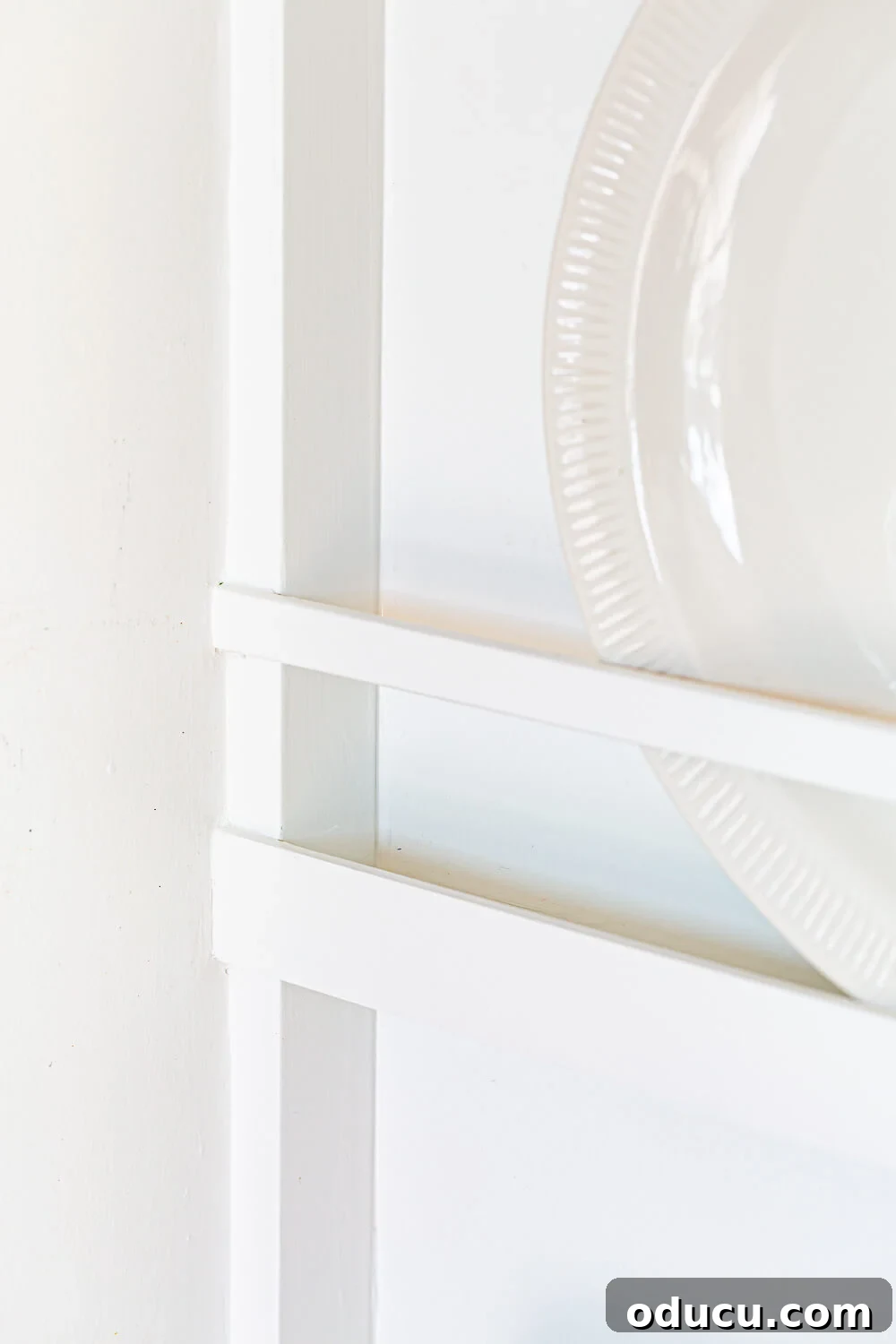

- Step 13: Install the Upper Safety Rail (Screen Molding)

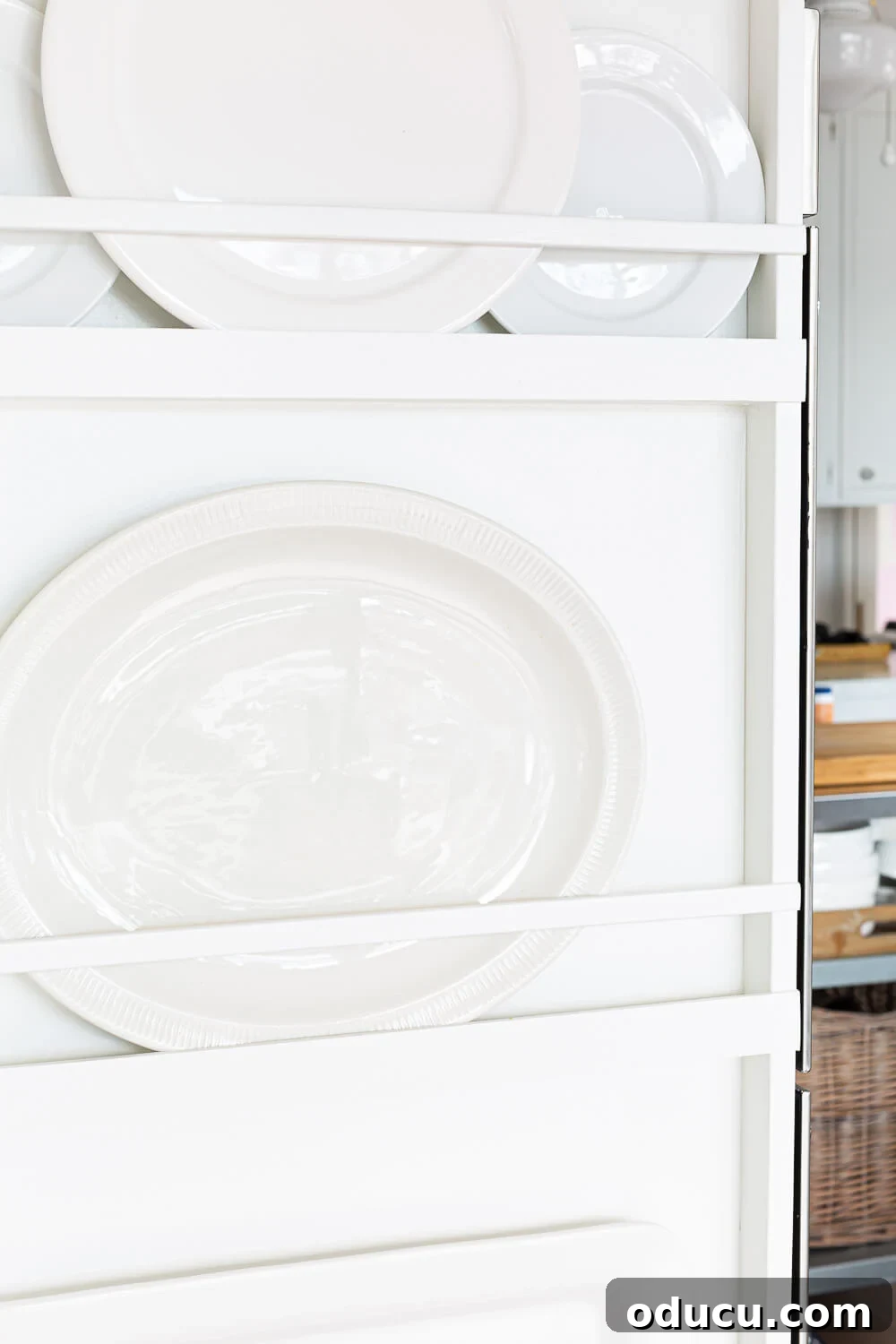

Once the lattice guard pieces are in place, it’s time to add the crucial upper safety rails. For each shelf, measure and mark a spot 2 inches directly above the top edge of the newly installed lattice strip. This 2-inch gap provides ample space for plates to rest securely while preventing them from tipping forward. Carefully position a 1″ piece of screen molding at this marked height and attach it firmly using finishing nails. Repeat this process for every shelf, ensuring consistent height and strong attachment. This dual-rail system offers superior protection and enhances the classic aesthetic of your plate rack.
- Step 14: Final Paint and Finishing of Guard Rails
With all the guard rails firmly in place, conduct a final inspection for any small nail holes or gaps. Apply spackle where necessary to fill any remaining imperfections, and caulk along the edges where the rails meet the shelves or frame to achieve a truly seamless finish. Once dry and sanded smooth, meticulously paint all the front guards and safety rails, matching the color and finish of the main frame. Allow the paint to dry completely. This final coat of paint brings the entire structure together, creating a polished, professional, and built-in look that will be a stunning addition to your home.
- Step 15: Style and Display Your Collection

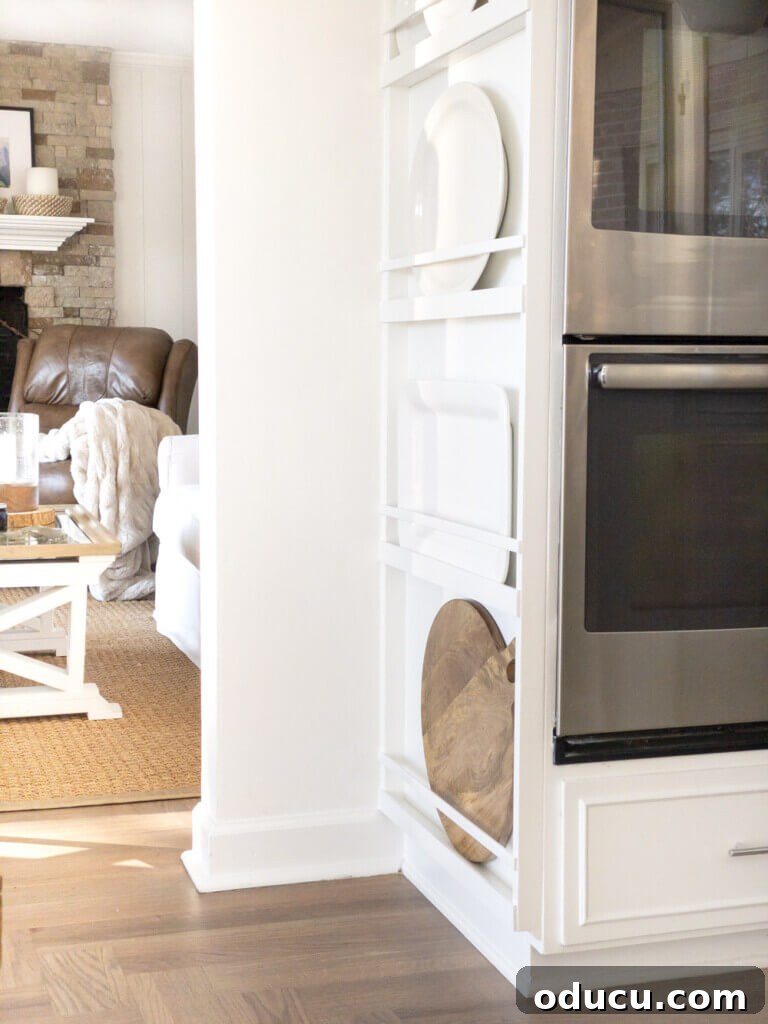

Once all paint touch-ups are dry and the entire structure is completely cured, the most exciting part begins: filling your magnificent new plate rack! Carefully arrange your cherished collection of plates, platters, bowls, and other decorative items on the shelves. Experiment with different arrangements to find what looks most aesthetically pleasing and complements your home’s decor. Whether you opt for a monochromatic display of white ceramics or a vibrant mix of patterns and colors, your floor-to-ceiling plate rack will undoubtedly become a stunning focal point, offering both practical storage and a powerful statement of personal style. Enjoy the beauty and functionality you’ve created!

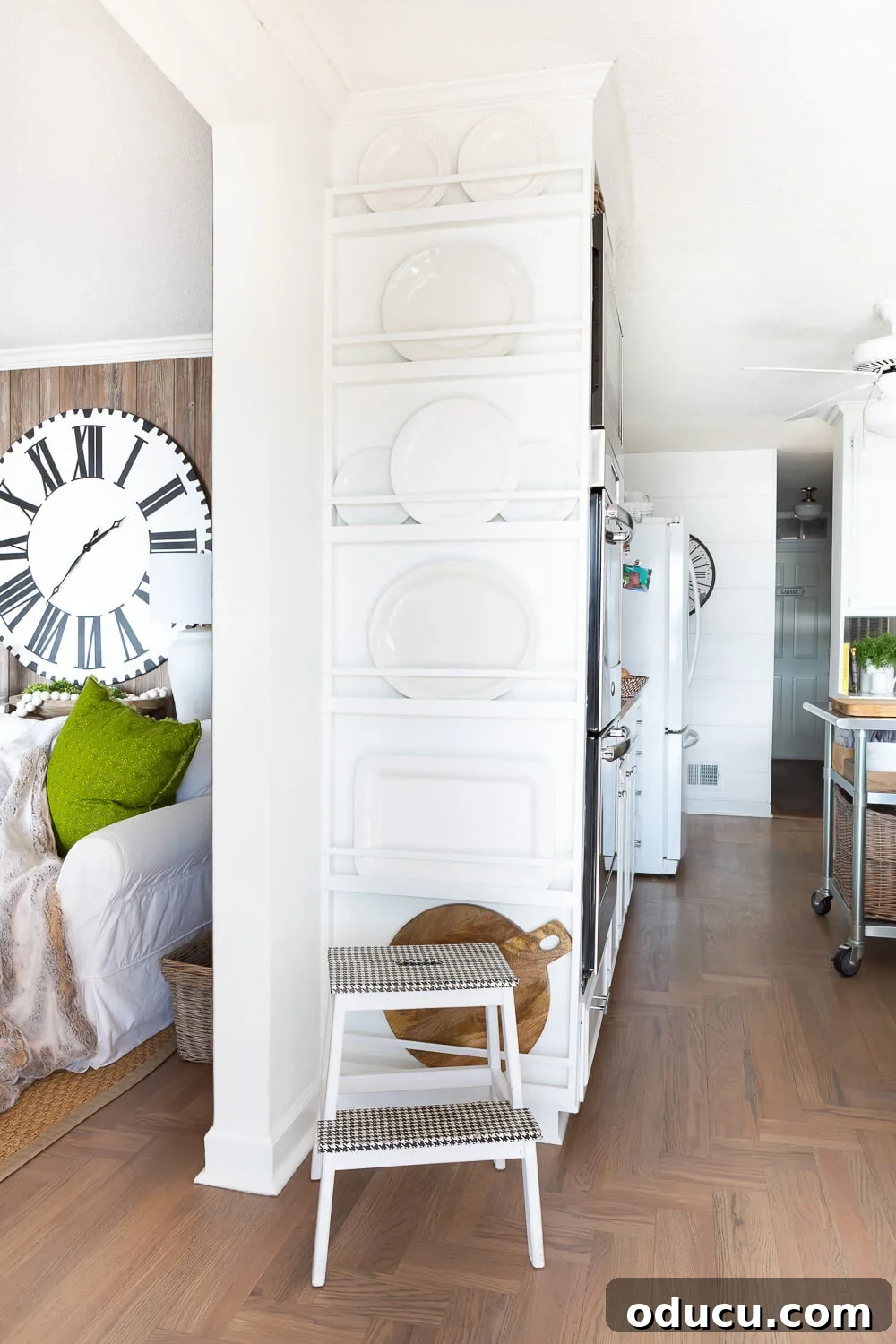

A DIY floor-to-ceiling plate rack wall is more than just a storage solution; it’s an opportunity to inject personality and unique charm into your living space. By following these detailed steps and tailoring the design to your specific needs, you can transform an overlooked wall into a stunning, functional display for your cherished collections. This built-in feature will not only elevate your home’s decor but also provide immense satisfaction in having created something beautiful and practical with your own hands. Embrace the transformation and enjoy your newly adorned space!
