Transforming a dull, worn concrete porch floor into a vibrant, inviting space is more achievable than you might think. A fresh coat of paint alone can work wonders, but taking it a step further with a stenciled design can truly elevate your outdoor living area. Imagine achieving the sophisticated look of intricate floor tiles, rustic stone pavers, or classic brickwork without the exorbitant cost and labor of actual installation. Stenciling is a remarkably budget-friendly and DIY-friendly technique that allows you to mimic expensive finishes, whether it’s creating a faux area rug, decorative wallpaper, or a stunning tiled floor.
The versatility of stenciling extends beyond floors. I’ve personally utilized allover stencils to artfully conceal minor imperfections on the walls of my guest bathroom, and even applied a unique pattern to a shower door for an unexpected touch of style. In my previous home, I used a similar technique to create the illusion of designer wallpaper in the foyer, proving just how impactful and adaptable this method can be for various home decor projects.
Recently, I had the wonderful opportunity to tackle a concrete porch makeover, employing a combination of specialized floor paint and a decorative stencil. This project breathed new life into an often-overlooked outdoor space, turning a simple concrete slab into a visually appealing extension of the home.
The impetus for this project came from my younger daughter, who reached out for assistance with her own porch floor. It was in dire need of a significant refresh, showing clear signs of wear and tear that diminished its overall appeal.

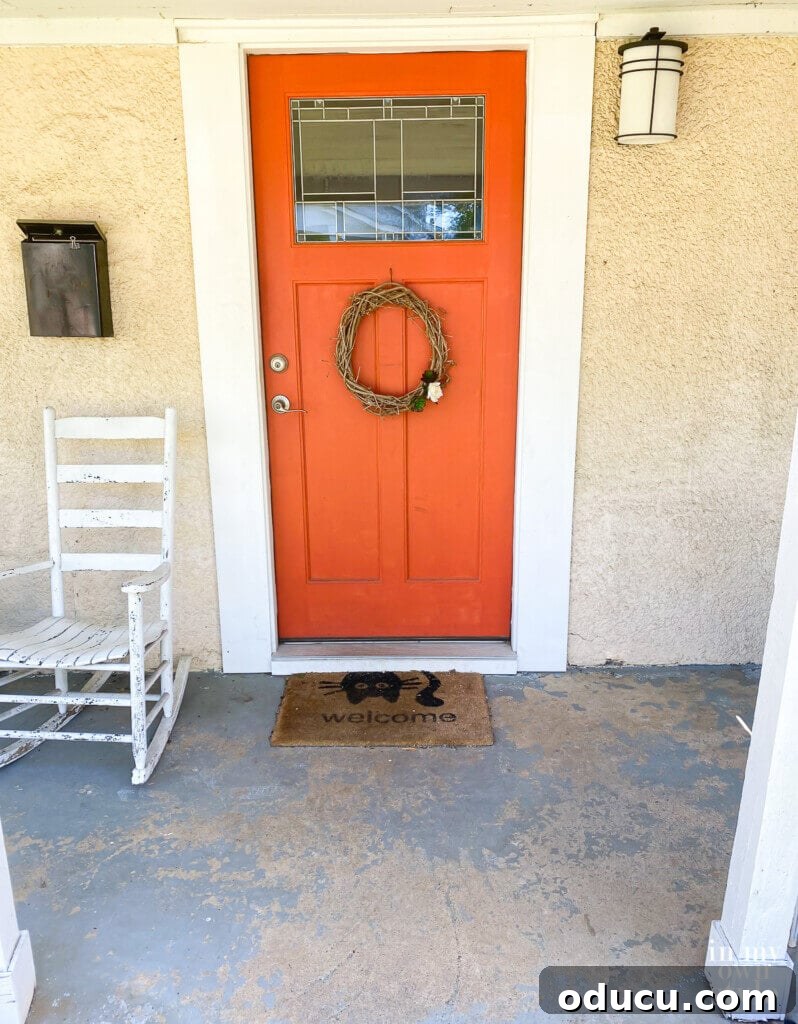

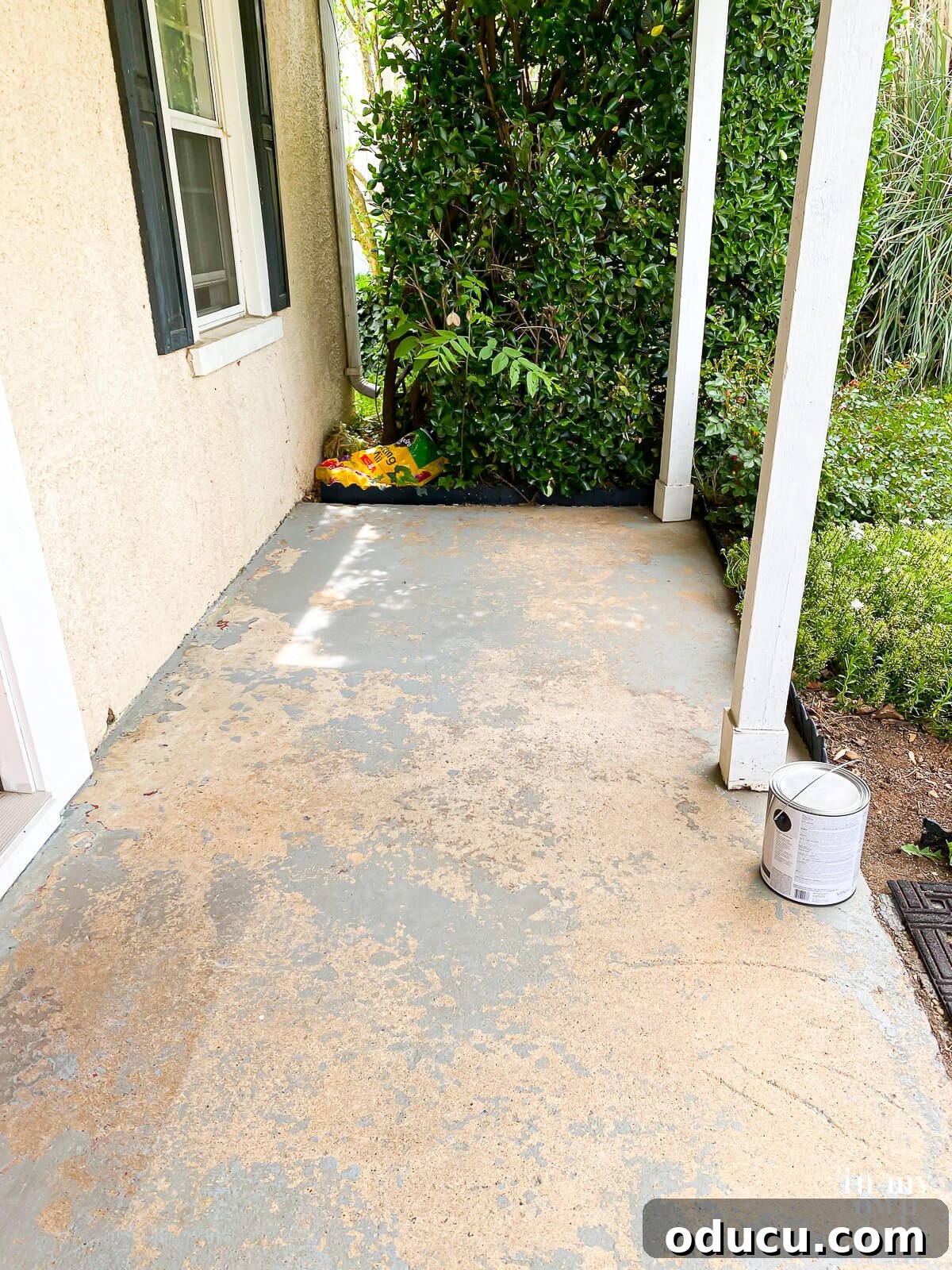

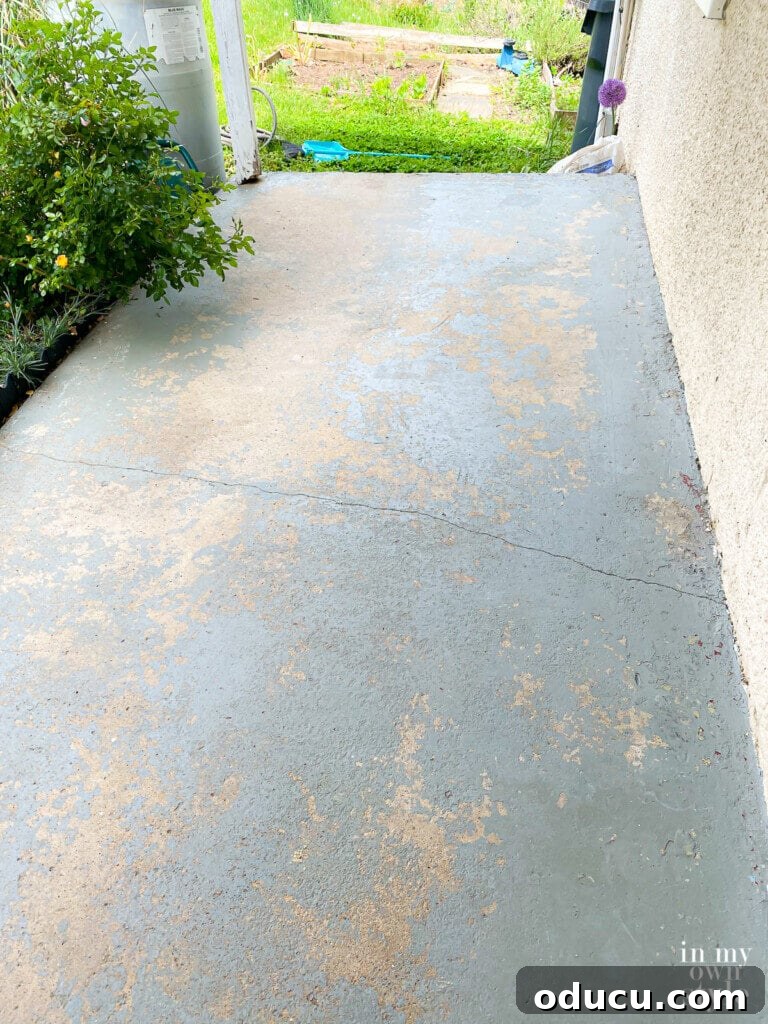

As clearly visible in the “BEFORE” photograph above, the concrete porch floor had at some point been painted a light gray. However, years of exposure to the elements and regular foot traffic had taken their toll, leaving the surface faded, scuffed, and patchy. It was unequivocally ready for a dramatic paint makeover, promising to transform not just the floor, but the entire ambiance of the porch.
With a clear vision in mind, we eagerly embarked on the project to give this floor a completely new identity. Our chosen method involved applying a fresh coat of durable floor paint and then layering an allover stencil to create the sophisticated illusion of a tiled surface, specifically in an elegant herringbone design. This approach not only rejuvenated the tired concrete but also added significant character and charm.
Choosing the Best Paint for Your Concrete Porch or Patio
When it comes to painting exterior concrete surfaces like porches and patios, not just any paint will do. It’s a common mistake to use standard exterior house paints, but these are simply not formulated to withstand the unique stresses that concrete floors endure. Over time, typical house paints on concrete are prone to cracking, peeling, and blistering, leading to a quickly deteriorated finish and repeated maintenance.
The optimal choice for outdoor concrete floors is paint specifically engineered for porch and patio applications. These specialized paints are formulated for superior durability and flexibility. They contain advanced binders and resins that allow the paint film to contract and expand harmoniously with the concrete as ambient temperatures fluctuate. This inherent elasticity prevents cracking and ensures the paint adheres robustly through all seasons, from scorching summers to freezing winters. Look for products labeled “porch and patio paint” or “floor paint” designed for exterior concrete, often featuring acrylic or epoxy-modified formulas for enhanced toughness and adhesion.
Fortunately, nearly every reputable paint manufacturer offers a dedicated line of porch and floor paints. These are typically available in a range of popular pre-mixed colors, but crucially, they can also be custom-tinted to match any specific hue you desire, offering endless design possibilities. Many are latex-based, offering the convenience of water clean-up and relatively fast drying times.

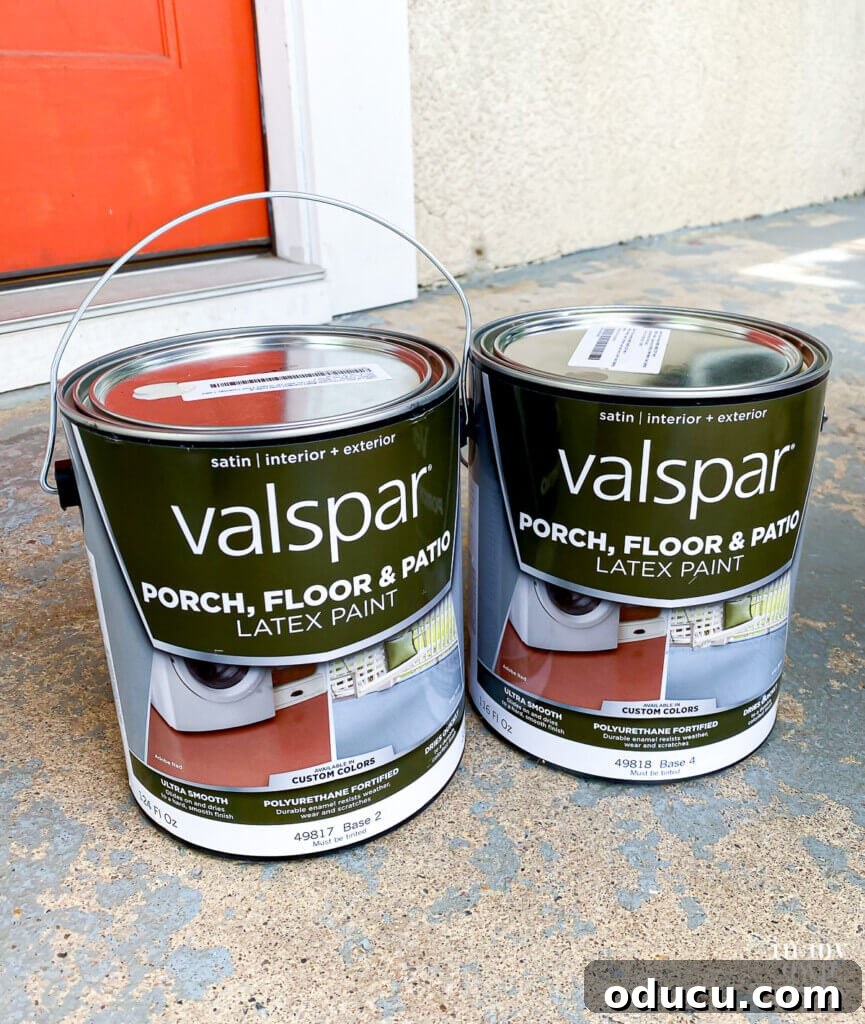

For this particular makeover of a previously painted, yet significantly worn, concrete porch, we opted for two high-quality products from Valspar. We used one can of their specialized concrete primer, which is crucial for optimal adhesion, and two distinct colors of their premium Porch, Floor, and Patio Paint to create our base and stencil design.
- Valspar Concrete Primer
- Valspar Latex Satin Porch, Floor and Patio Paint – Colors Used: Base Color: Mountain Smoke, Stenciled Line Color: Greyed
Maximizing the Durability: How Long Does Concrete Paint Last Outdoors?
A common concern for DIY enthusiasts considering a concrete floor painting project is the longevity of the finish. Rest assured, with today’s advanced paint technologies, an exterior painted concrete floor can offer remarkable durability. Modern formulations from major brands incorporate robust bonding primers and high-performance acrylic and epoxy resins, specifically designed to withstand the rigorous demands of outdoor environments. These paints are built to take a beating, so there’s no need to shy away from transforming your porch or patio floor due to fears of a short lifespan.
The key to achieving maximum durability and extending the life of your painted concrete floor lies significantly in proper preparation and application. If you meticulously prep the outdoor concrete surface—starting with a thorough power washing to remove all dirt, grime, and loose paint, followed by allowing it to dry completely—and then apply the paint in thin, even coats, allowing each coat to cure fully before the next, your beautifully painted concrete floor can confidently last for many years. Regular cleaning and prompt touch-ups of any minor wear can further prolong its pristine appearance.
How to Paint and Stencil a Concrete Porch or Patio Floor: A Step-by-Step Guide
Ready to give your outdoor space a stunning makeover? Follow these detailed instructions to successfully paint and stencil your concrete patio or porch, creating a high-impact, custom look that will impress.
Supplies Needed for Painting:
- Power washer and a suitable concrete cleaner (or heavy-duty detergent/TSP)
- Valspar Concrete Primer
- Valspar Porch, Floor and Patio Paint – Base color (e.g., Mountain Smoke)
- High-quality paint brush (for cutting in edges and corners)
- Paint roller with a 3/4″ nap roller cover (ideal for textured concrete)
- Extension paint roller pole (to save your back)
- Paint roller tray
Supplies for Stenciling:
- Valspar Porch, Floor and Patio Paint – Stencil color (e.g., Greyed)
- Cutting Edge Stencil in your chosen pattern (we used: Fine Line Herringbone)
- Damp rag (for cleaning stencil)
- Painter’s tape (low-tack recommended)
- Stencil brush or dense foam roller (for applying stencil paint)
- Thin-tipped artist paint brush (for touch-ups)
- Paper towels or a plate for blotting excess paint
Time needed: 2 days
A comprehensive guide to painting and stenciling a concrete porch or patio floor using a detailed Cutting Edge Design Stencil, transforming your outdoor area into a stylish extension of your home.
- Step 1: Meticulously Prep the Concrete Floor
Proper preparation is the most critical step for a long-lasting finish. Begin by thoroughly cleaning the entire concrete floor. The most effective method is to power wash the surface, ensuring all loose dirt, grime, oil stains, and any existing loose paint flakes are completely removed. If a power washer isn’t available, scrub the floor vigorously with hot water and a strong detergent or TSP (trisodium phosphate) solution. Rinse the floor exceptionally well to remove all cleaning residues. Allow the concrete to dry completely for at least 24-48 hours, or until there is absolutely no moisture present, as trapped moisture can lead to paint adhesion issues.

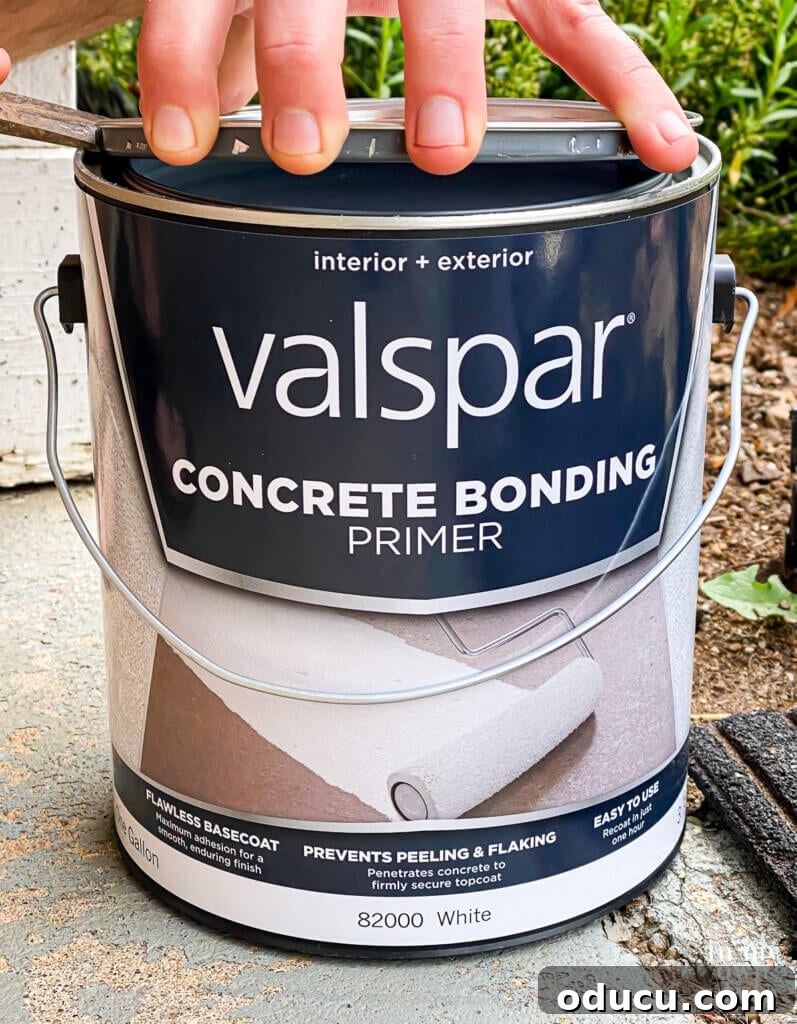

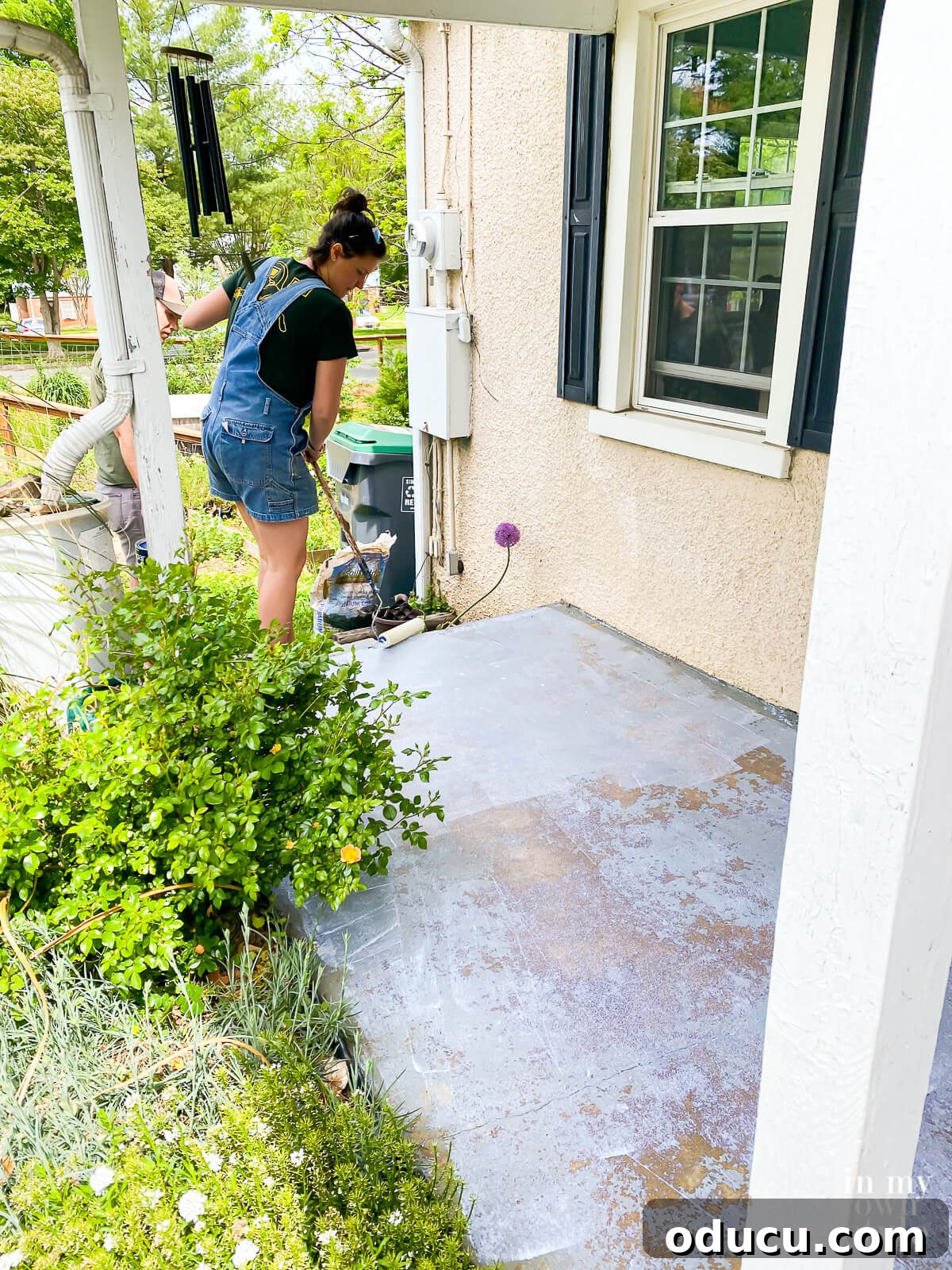

- Step 2: Apply a Bonding Coat of Concrete Primer
Do not skip this essential step! A high-quality concrete primer creates a crucial bonding layer that ensures optimal adhesion for your topcoats and helps prevent future peeling. Roll on one even coat of concrete primer. It may appear milky white when wet, but it will dry clear. Allow the primer to dry for at least one hour, or according to the manufacturer’s specific instructions. It’s important to apply your first coat of paint within the recoat window specified on the primer can, typically between one to four hours, to ensure maximum adhesion.

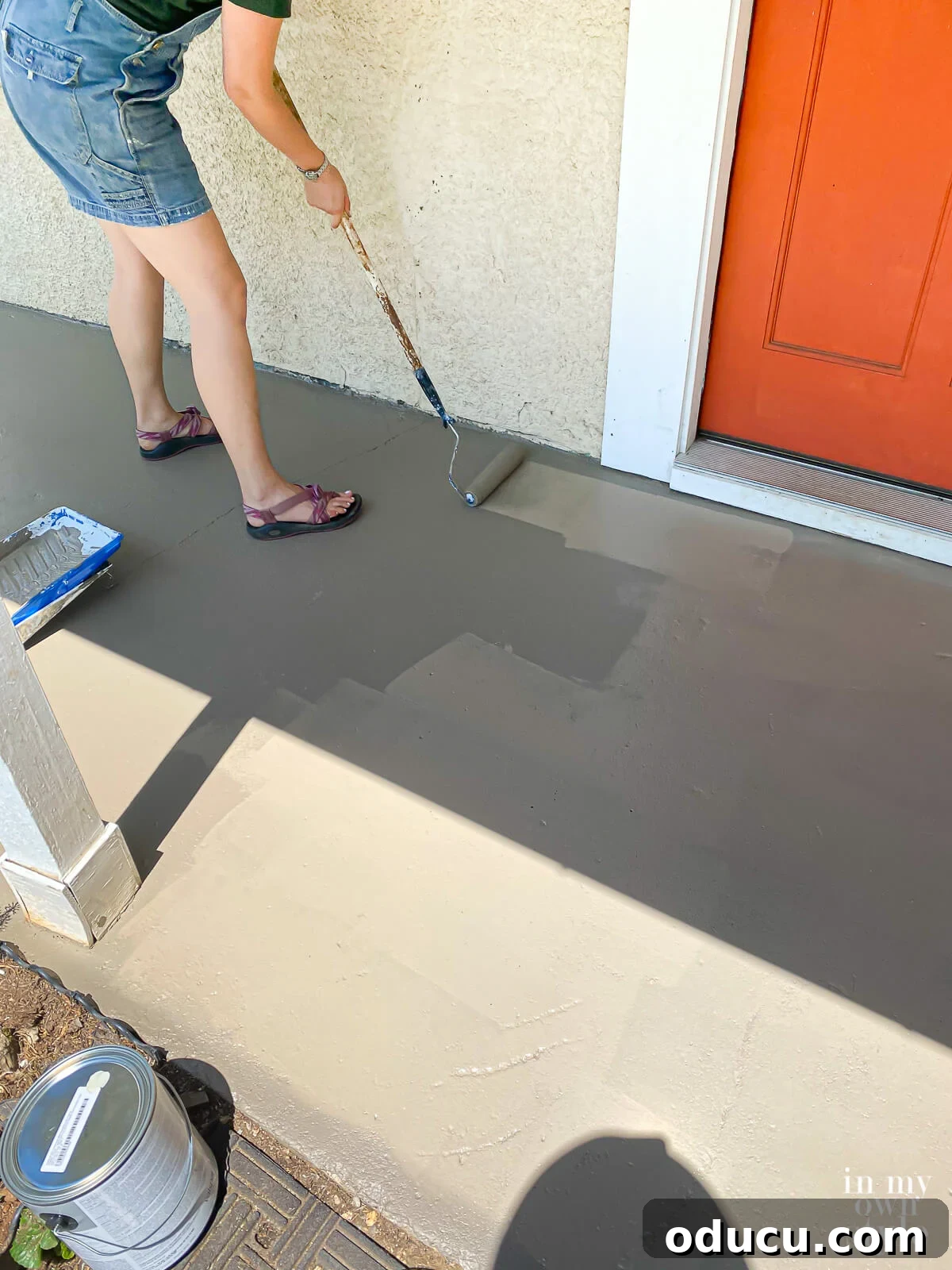

- Step 3: Roll On the Base Coat of Porch Paint
For a stenciled floor, you’ll need two distinct paint colors. Start by using a 1/2″ nap paint roller to apply one light, even coat of your chosen base paint color. Work in manageable sections, ensuring consistent coverage. Allow this first coat to dry completely, which typically takes several hours. Once dry, apply a second coat of the base color to achieve full opacity and durability. Ensure this second coat is also applied thinly and evenly. Allow it to dry for at least 4 hours, or ideally overnight, before proceeding to the stenciling phase. Proper drying time is crucial for preventing the stencil paint from bleeding under the edges.
- Step 4: Strategically Plan Your Stenciling Starting Point
Before you begin stenciling, carefully plan your layout. Always refer to the specific directions that accompany your stencil. The goal is to determine the most visible area of the floor from your main vantage point. This is where you want to ensure a full, unbroken stencil pattern begins. Work outwards from this prominent area. Any partial patterns or cut-off designs should ideally be relegated to less conspicuous areas, such as against a far wall or tucked away where they are less noticeable. Dry-fit the stencil in a few spots to visualize the repeat and ensure your design runs straight and symmetrically.

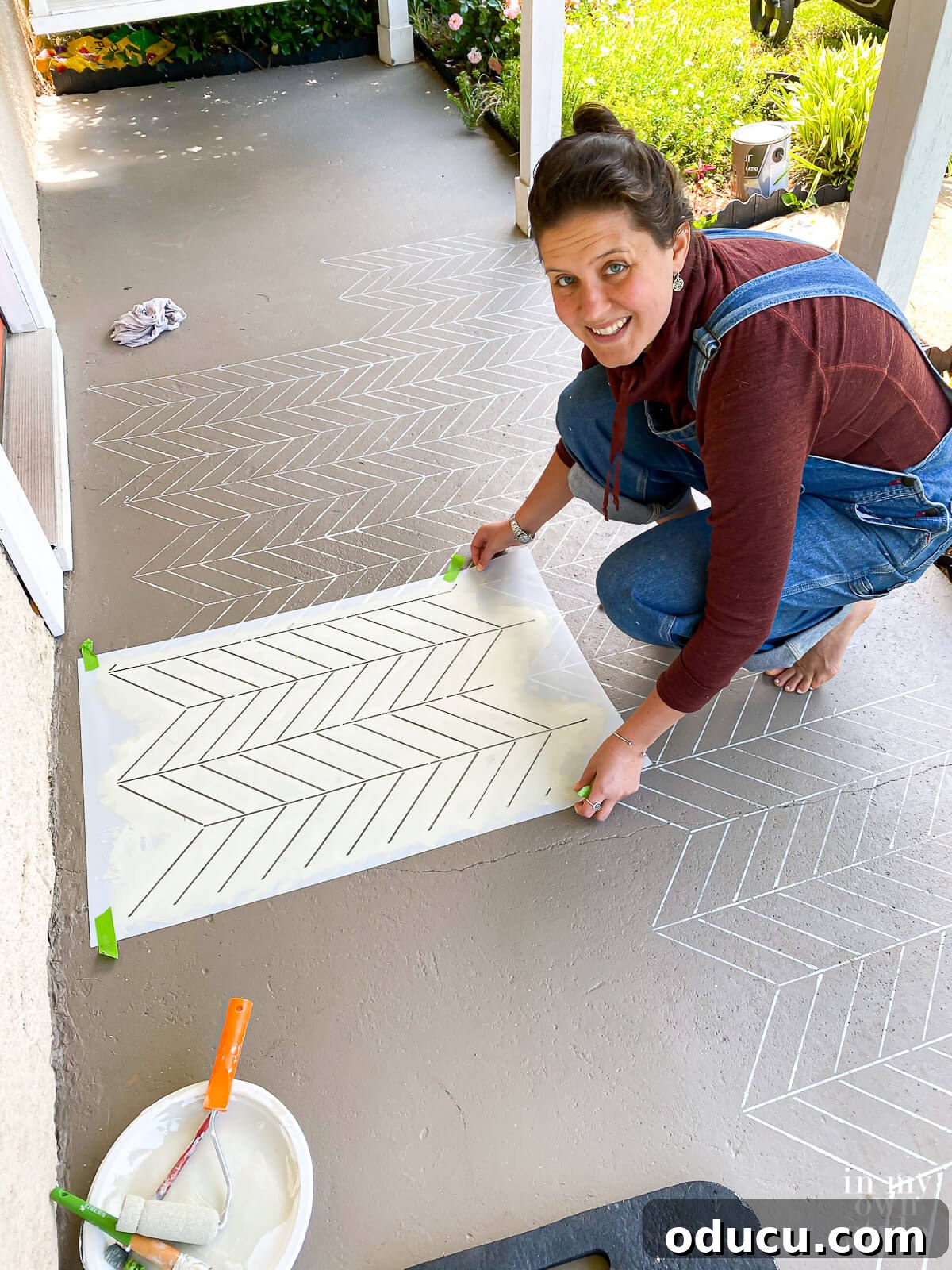

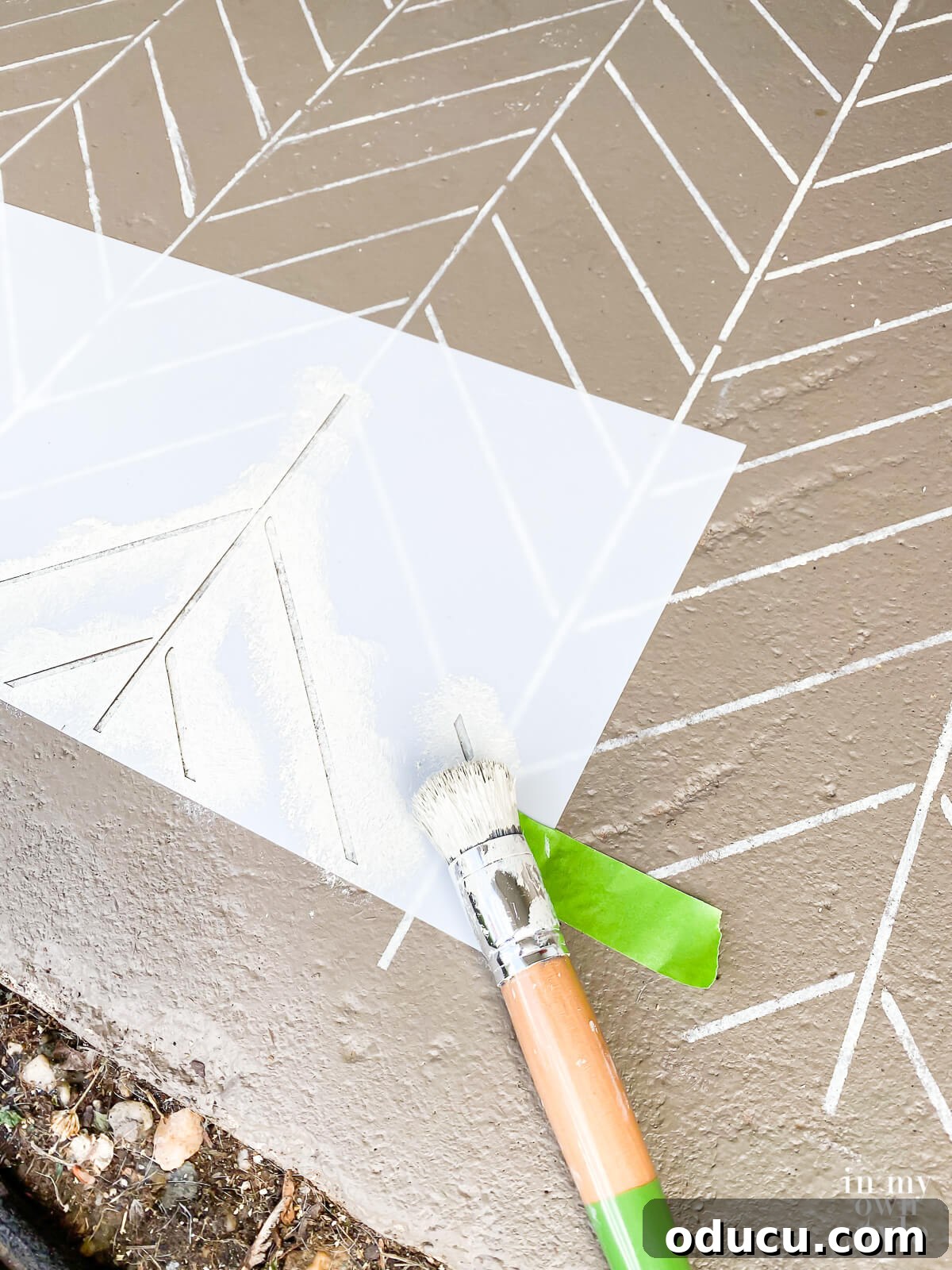

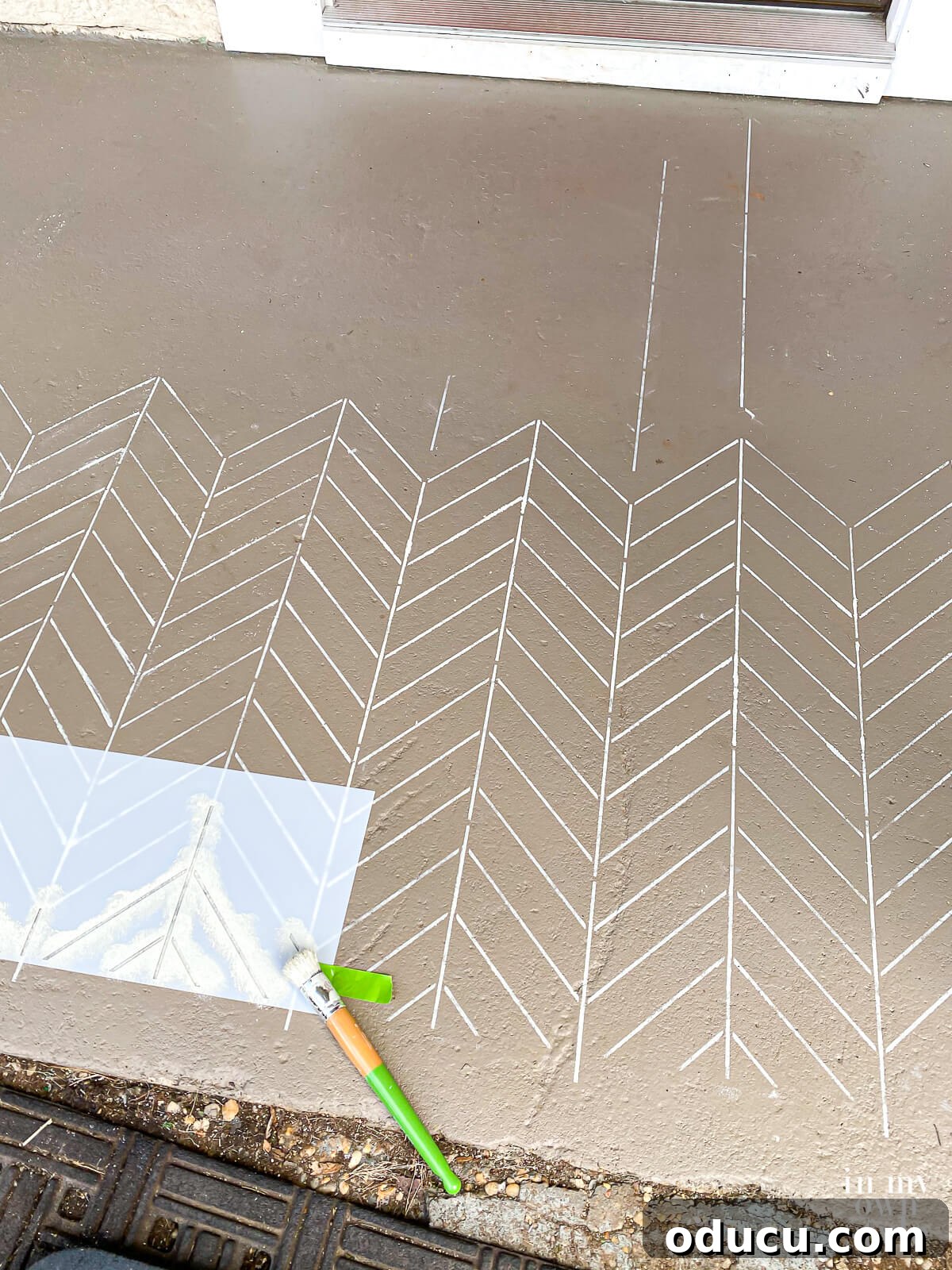

- Step 5: Secure the Stencil and Apply Paint with Precision

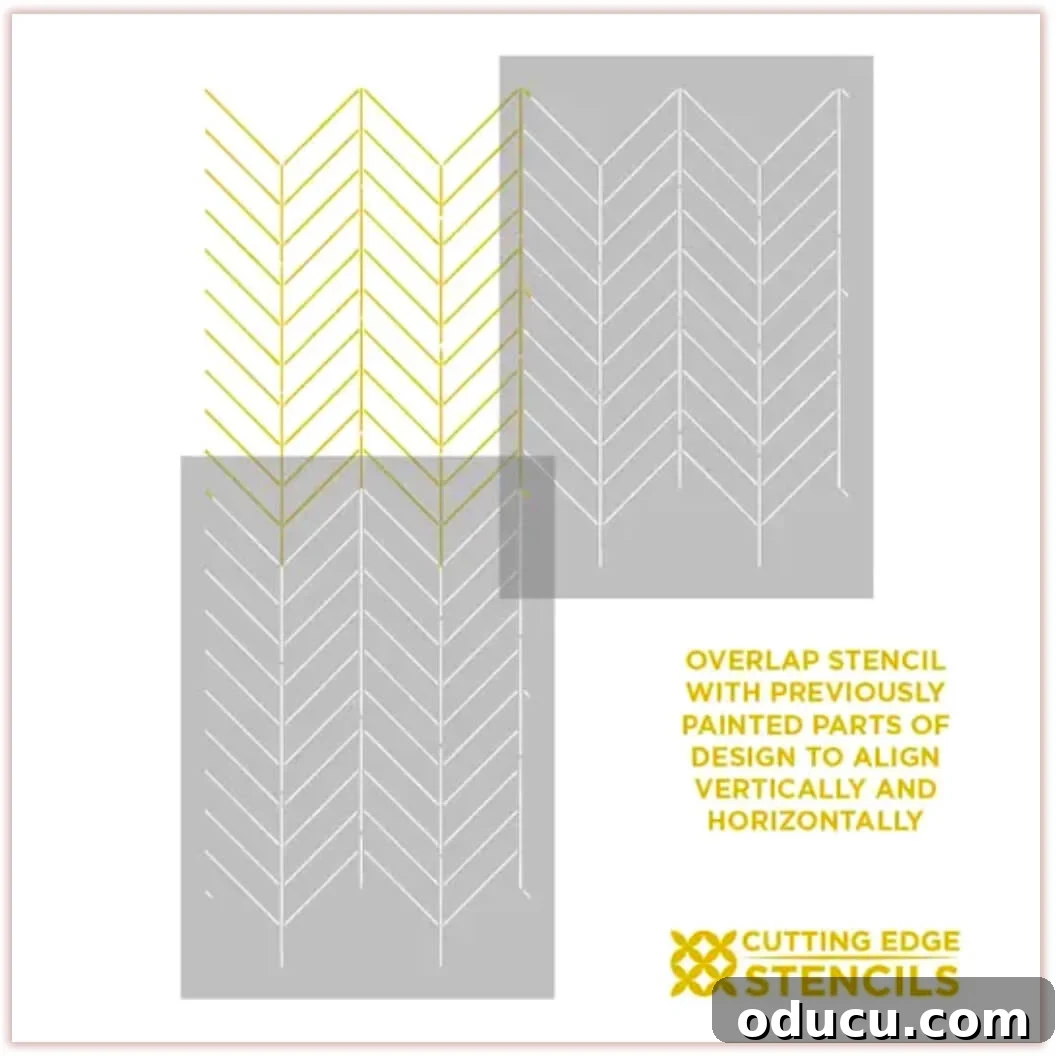

Once you’ve identified your optimal starting point, carefully position the stencil on the floor, verifying that the design is perfectly aligned and runs straight. Use painter’s tape to secure the stencil firmly in place, preventing any shifting during application. Dip your stencil brush or dense foam roller into your stencil paint, then crucially blot off any excess paint onto a paper towel or plate. This step is vital for preventing paint bleed under the stencil. With a minimal amount of paint, gently pounce the brush or roll over the stencil design. Apply light, even pressure, building up the color in thin layers rather than trying to achieve full coverage in one go. Less paint is definitely more to achieve crisp, clean lines.
- Step 6: Utilize Edge Stencils for a Seamless Finish Around Borders
After stenciling the main body of the floor, you’ll inevitably have areas along the edges, corners, and against walls where the large stencil doesn’t fit completely. This is where an accompanying smaller “edge” stencil comes into play. Most allover stencil kits include a smaller section of the main design specifically for these tricky areas. Carefully position and tape this smaller stencil, or gently bend your main stencil if it’s flexible, to fill in the remaining gaps. Apply paint using the same light, blotting technique to maintain continuity and achieve a polished look.
- Step 7: Perform Detailed Touch-Ups for a Professional Result
Once all stenciling is complete and dry, take a step back and inspect your work. You might notice a few areas where the stencil lines aren’t perfectly crisp, or perhaps a small spot needs a bit more color. Use a thin, pointy-tipped artist’s paintbrush to meticulously hand-paint and fill in any imperfect lines or small gaps. This step is crucial for achieving a truly professional and seamless look, making the stenciled pattern appear as if it were original tiling. You can also use this brush to extend lines subtly off the edge of the floor if desired, enhancing the continuous pattern effect.
- Step 8: Allow Adequate Drying and Curing Time
The final, and equally important, step is patience. Refer to the specific drying and curing times indicated on your paint label. There’s a difference between “dry to touch” and “ready for foot traffic” or “fully cured.” Avoid walking on the newly painted and stenciled surface for the recommended time to prevent smudging or damage. Similarly, refrain from placing furniture back onto the porch until the paint has fully cured, which can take several days or even a week, depending on humidity and temperature. This ensures the paint hardens properly, providing maximum durability and a long-lasting finish.

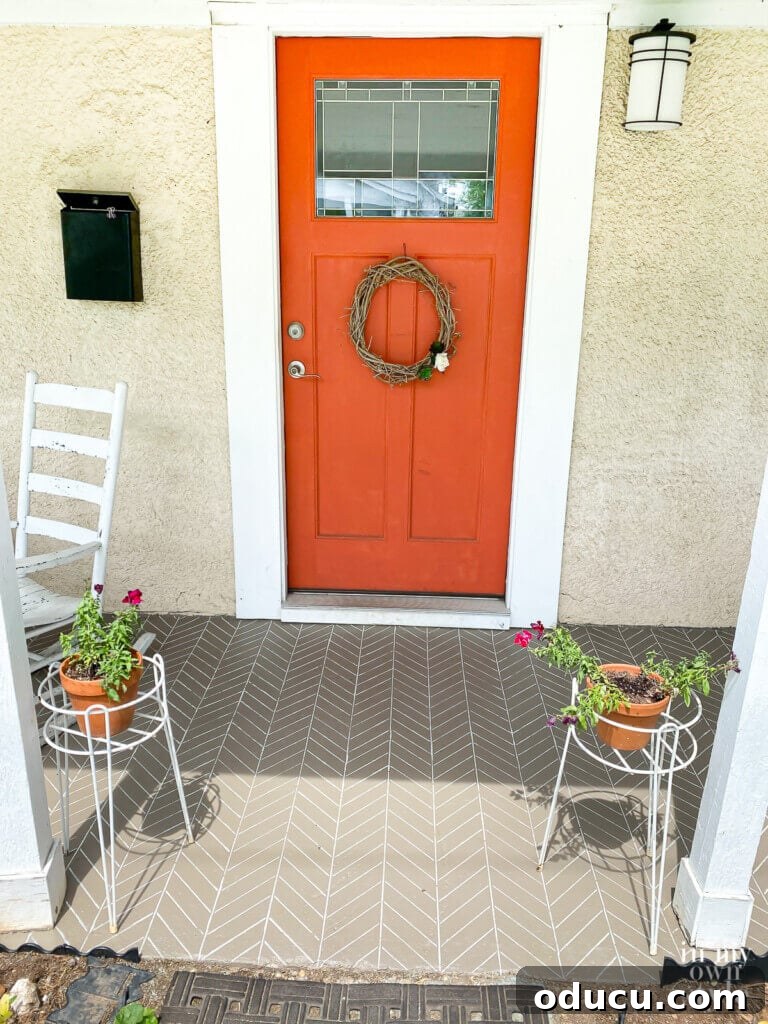

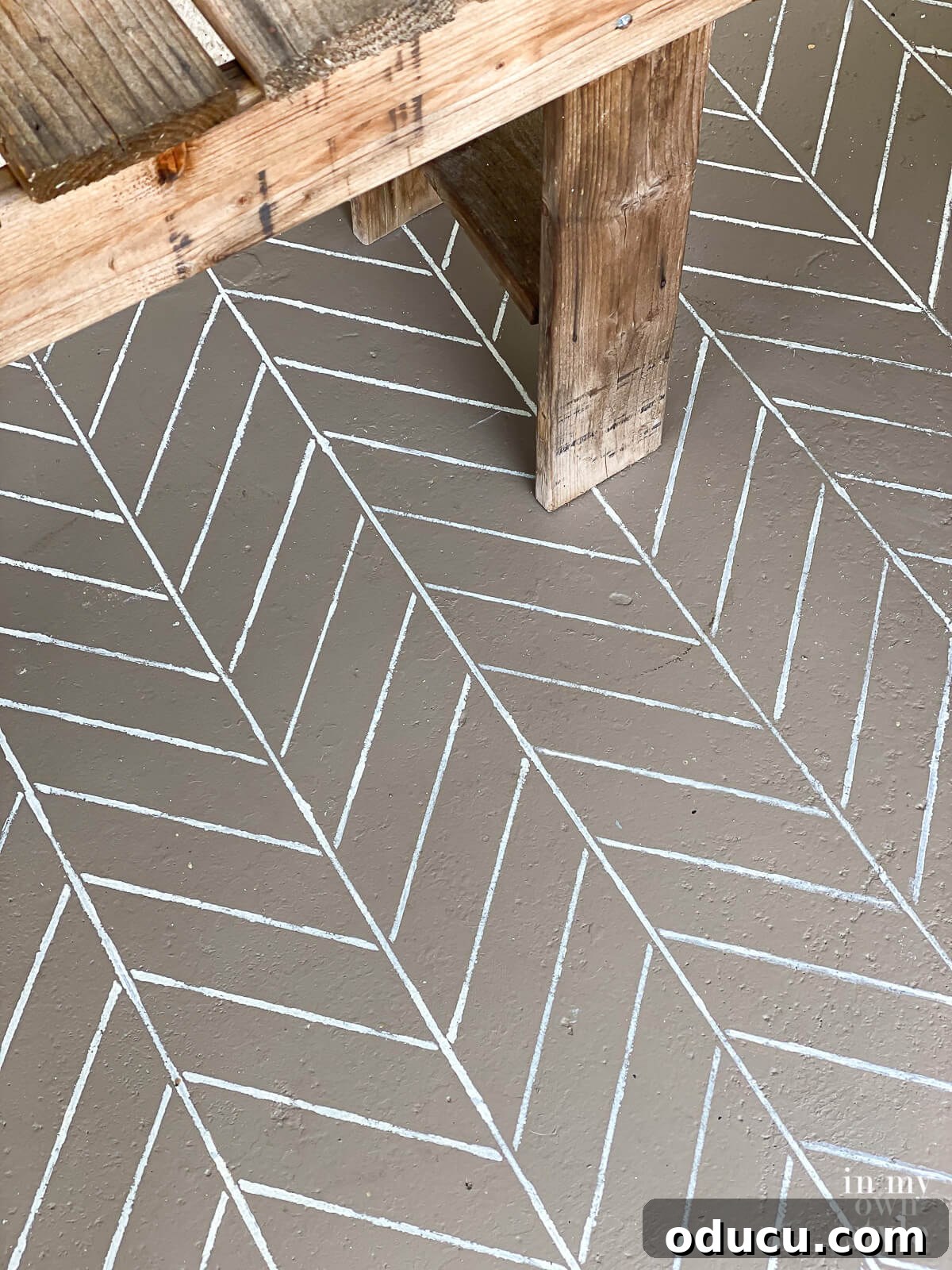

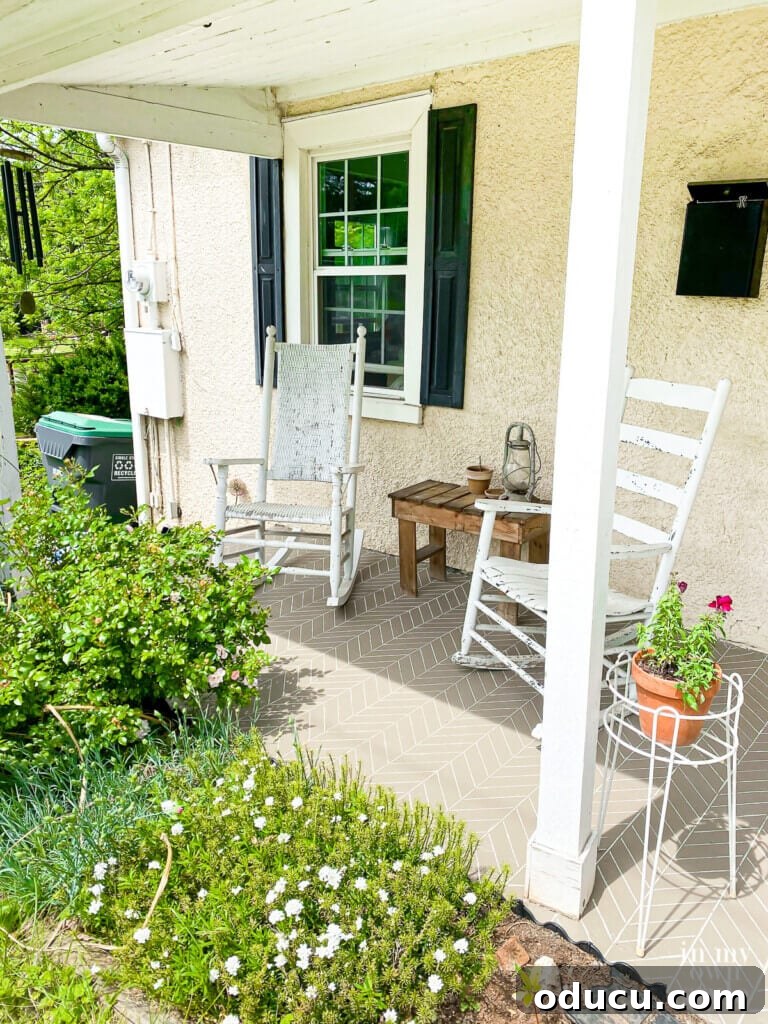

The Stunning Transformation: Floor – AFTER
Project Timeline: How Long Did It Take To Paint and Stencil the Floor?
You might be surprised to learn that this entire porch transformation, from initial prep to the final stenciled masterpiece, was completed within just a few focused hours spread over a two-day period. The key was breaking the project into manageable stages and respecting the drying times for each coat of paint and primer. This efficient timeline makes it an ideal weekend DIY project for anyone looking to make a significant impact on their outdoor living space without committing to a prolonged renovation.
One of the great advantages of using dedicated porch and floor paint is its inherent durability. Because these paints are designed to withstand heavy foot traffic and outdoor elements, an additional sealer was not required for this particular project. The specialized formulation of the Valspar paint provides ample protection, simplifying the process and reducing both time and material costs.

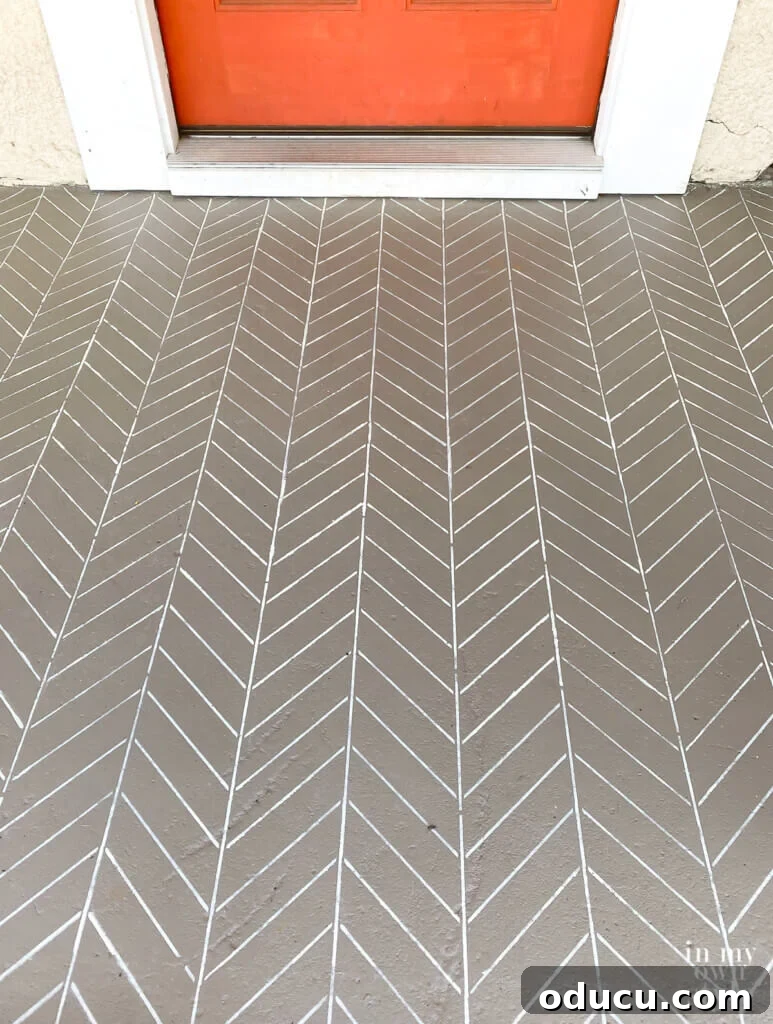

The chosen herringbone pattern, subtly rendered in contrasting yet harmonious colors, resulted in a sophisticated and inviting aesthetic. The overall design provides just the right amount of visual interest and texture, transforming the formerly drab concrete into a stylish and welcoming entrance. This subtle enhancement makes the porch feel more integrated with the home’s style and significantly more enjoyable.
If you’re inspired to embark on your own stenciling adventure, whether it’s for a floor, a wall, or even a tabletop, the possibilities are virtually limitless. There are hundreds of allover stencil patterns available, ranging from geometric and traditional to organic and modern, ensuring you can find the perfect design to complement your unique decorating style and personal taste. Stenciling offers a fantastic way to infuse personality and high-end design into your home without breaking the bank.
Explore a vast collection of beautiful designs and unleash your creativity. You can find inspiration and detailed guidance here: Cutting Edge Stencils, and discover even more helpful how-to stencil tips to perfect your technique.
Whether your goal is to refresh a weathered concrete slab, add character to an indoor concrete floor, or simply explore a cost-effective alternative to traditional flooring, stenciling provides an accessible and rewarding solution. This method allows you to mimic the sophisticated appearance of costly materials like tile, brick, or even intricate wood patterns, all while maintaining a DIY-friendly budget. Give your floors the designer look they deserve!
