Transforming your outdoor living areas can dramatically enhance your home’s curb appeal and overall aesthetic. One of the most impactful yet budget-friendly ways to achieve this is by painting your concrete porch floor. But why stop there? Take your renovation a step further by stenciling a sophisticated design over the painted surface, creating the illusion of luxurious tiled, natural stone, or classic brick flooring. Stenciling is a remarkably simple technique that offers the high-end look of expensive materials like wallpaper, intricate floor tiles, or even a custom area rug, all without breaking the bank. It’s a fantastic DIY solution for homeowners looking to add personality and elegance to their exterior spaces.
Having personally leveraged the power of stencils in various home projects, I can attest to their versatility and transformative potential. I’ve used an allover stencil to skillfully conceal imperfections on the walls of my guest bathroom and even adorned a shower door with a custom pattern. In a previous home, I utilized an allover stencil to meticulously create the sophisticated look of wallpaper in the foyer, proving just how adaptable this technique is for diverse applications. These experiences highlight the creative freedom stenciling provides, allowing you to mimic almost any texture or pattern with paint.
Most recently, I embarked on an exciting project: painting and stenciling a concrete porch floor for my younger daughter. Her porch was in desperate need of a facelift, and we decided to infuse it with new life using specialized floor paint and a beautiful stencil design. This endeavor not only refreshed the space but also provided an excellent opportunity to document the process, sharing valuable insights and tips for anyone considering a similar DIY upgrade.

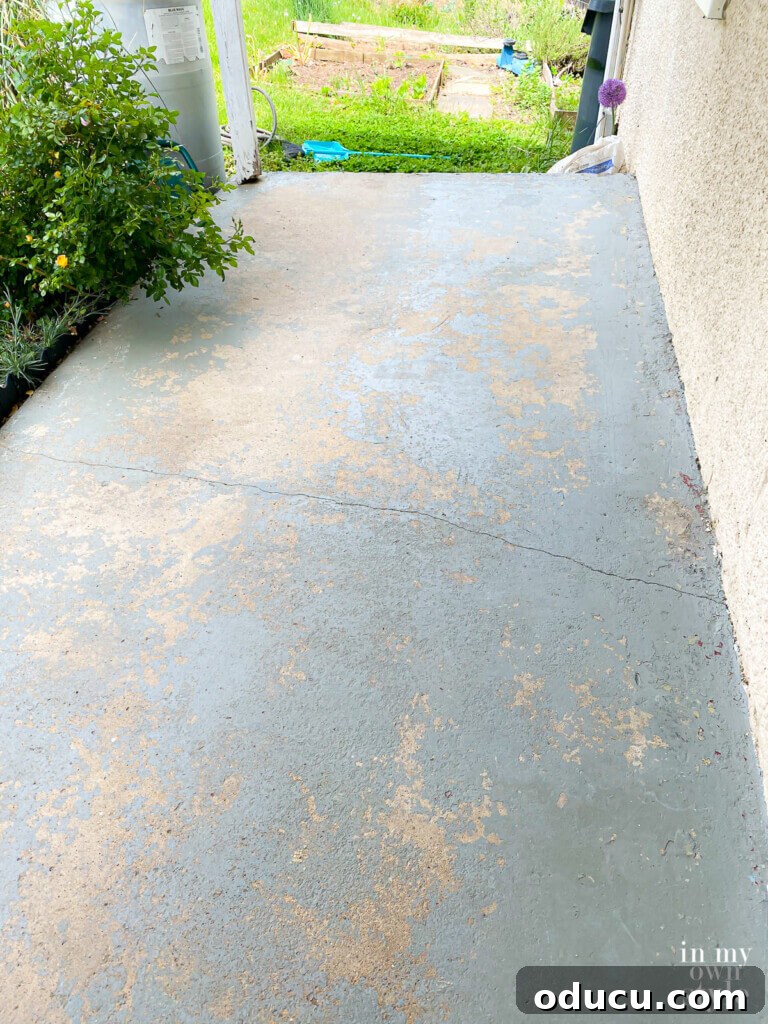

The Before: Unveiling a Worn Concrete Porch

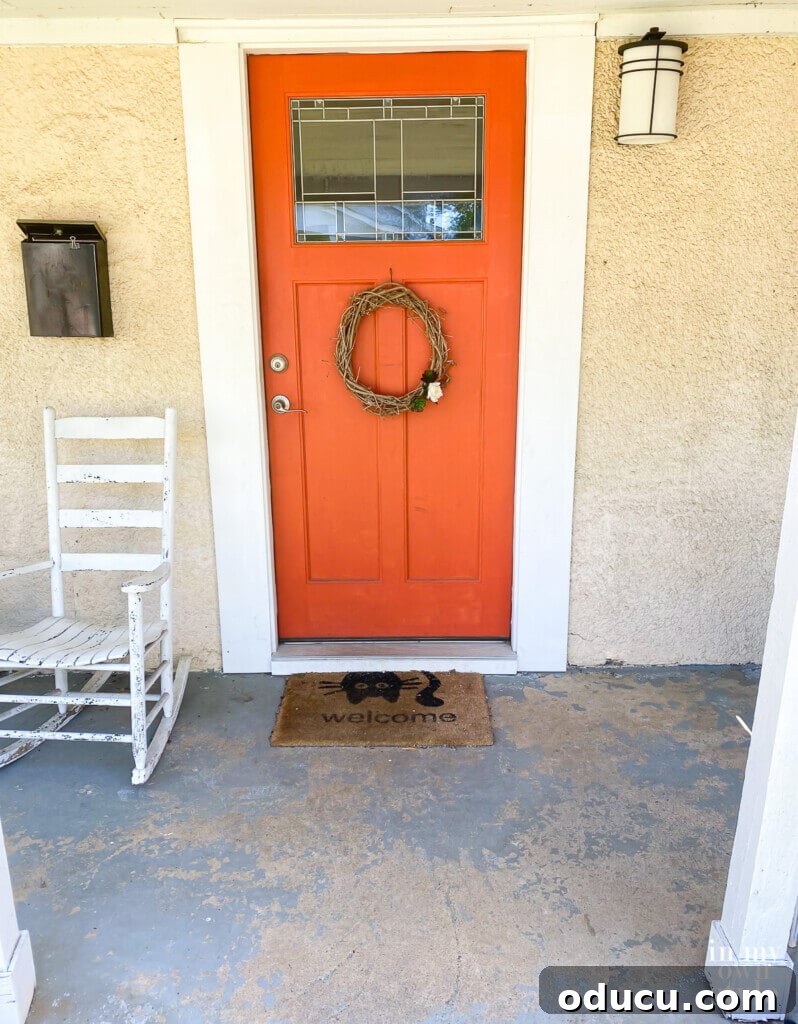

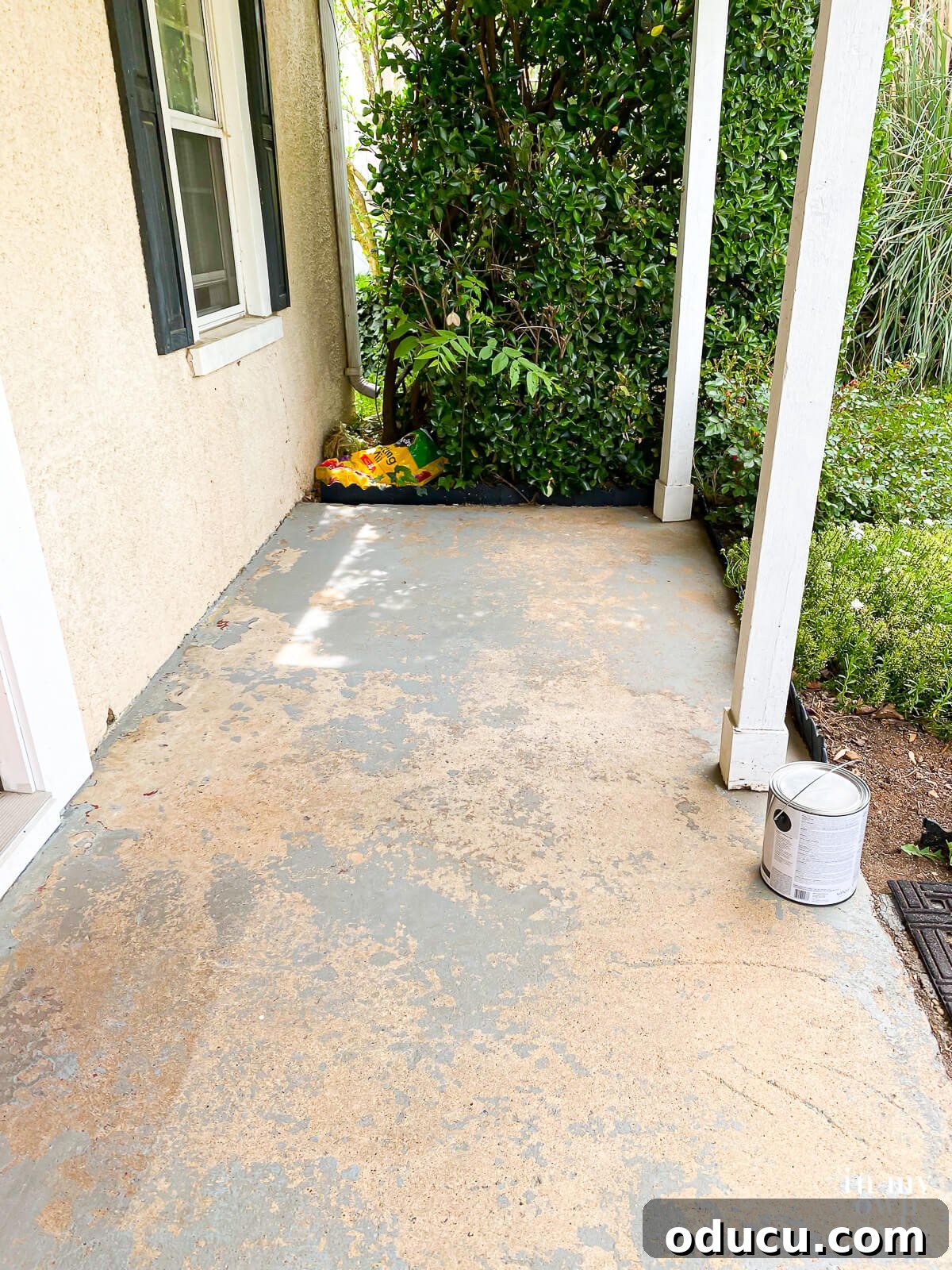

As evident from the “BEFORE” photographs, the concrete porch floor had certainly seen better days. It once sported a coat of grey paint, which, over time and with constant exposure to the elements and foot traffic, had become significantly worn, faded, and uninviting. The surface showed clear signs of age, with peeling paint and a general lack of vibrancy that diminished the overall appeal of the outdoor area. This visual deterioration served as the perfect motivation for a complete paint makeover.
The previous paint job, while serving its purpose for a while, demonstrated the typical wear and tear that outdoor concrete surfaces endure. Scratches, fading, and general dullness had replaced its original freshness, indicating it was more than ready for a renewed aesthetic. Our mission was clear: to revitalize this tired space and give it a fresh, stylish, and durable finish that would withstand future use and weather conditions.
With a clear vision in mind, we eagerly set to work, determined to give this floor a complete overhaul. Our chosen method involved applying a fresh coat of high-quality floor paint, followed by an allover stencil to mimic the sophisticated appearance of a herringbone tiled floor. This approach promised not only a dramatic visual upgrade but also a resilient surface that would add lasting value and charm to the porch.
Choosing the Right Paint for Outdoor Concrete: Durability Matters
What Kind of Paint Can Be Used on a Concrete Porch or Patio?
When it comes to painting exterior concrete surfaces like porches and patios, not just any paint will do. It’s a common misconception that standard exterior house paint can handle the unique challenges of concrete floors, but this is a critical mistake. Regular exterior paints are formulated for vertical surfaces and are not designed to withstand the constant foot traffic, abrasive elements, and significant temperature fluctuations that horizontal concrete floors endure. Using them on concrete will almost certainly lead to premature cracking, peeling, and a short-lived finish, ultimately wasting your time and effort.
The absolute best paint for exterior concrete floors is one specifically engineered for porch and patio applications. These specialized paints are formulated with advanced binders and resins that provide superior adhesion and flexibility. This unique composition allows the paint to contract and expand seamlessly with the concrete as temperatures shift from hot summer days to cold winter nights, preventing the common issues of chipping and peeling. Furthermore, porch and patio paints are designed for exceptional durability, resisting abrasion from foot traffic, scuffs from furniture, and the harsh effects of weather, ensuring a long-lasting, beautiful finish.
Virtually every reputable paint manufacturer offers a dedicated line of porch and floor paint. These products are readily available in a variety of pre-mixed colors, and for those seeking a more personalized touch, most can be custom-tinted to match any color swatch you desire. For our daughter’s previously painted and considerably worn concrete porch, we opted for two high-quality products from Valspar, a trusted name in paints. We utilized one gallon of Valspar Concrete Primer to ensure optimal adhesion and durability, followed by two distinct colors of Valspar Latex Satin Porch, Floor and Patio Paint. The chosen base color was Mountain Smoke, a rich, neutral tone that provided an excellent foundation, while the stencil lines were rendered in a complementary shade called Greyed, creating a subtle yet striking contrast.
How Long Does Concrete Paint Last Outside?
The longevity of outdoor concrete paint is a common concern for many homeowners, and understandably so. However, with today’s advanced paint technologies, fears of a short-lived finish are largely unfounded. Most major brands now offer highly durable paint formulas, often incorporating strong bonding primers, acrylics, and even epoxy components. These formulations are specifically designed to withstand significant wear and tear, ensuring that a properly applied paint job can last for many years.
The key to maximizing the lifespan of your painted concrete floor lies in diligent preparation and meticulous application. If you follow these crucial steps – thoroughly preparing the outdoor concrete floor by power washing it to remove all dirt, grime, and loose paint, allowing it to dry completely, applying the paint in thin, even coats, and permitting each coat to fully cure before applying the next – you can expect your painted concrete floor to maintain its beauty and integrity for years to come. Skipping any of these steps can compromise adhesion and durability, leading to premature deterioration. Think of it as an investment: a little extra effort in preparation yields significant returns in longevity.
Step-by-Step Guide: How to Paint and Stencil a Concrete Porch or Patio Floor
Ready to give your concrete porch or patio a stunning new look? Follow our comprehensive guide to achieve a professional-looking, stenciled finish that will impress for years. This project transforms a drab surface into a beautiful faux-tiled masterpiece.
Here’s a breakdown of the supplies you’ll need for this exciting stenciled concrete patio or porch project:
Essential Painting Supplies:
- Power washer and suitable concrete cleaner: Crucial for thorough surface preparation.
- Valspar Concrete Primer: Ensures optimal adhesion and a durable base.

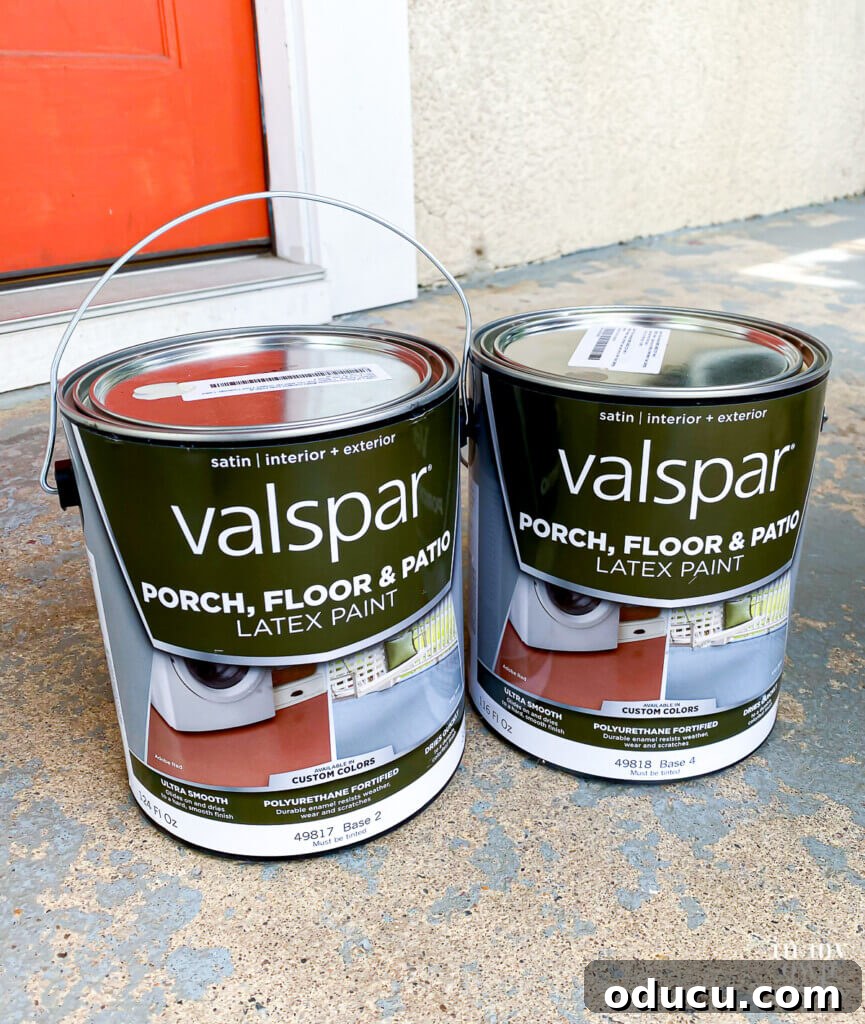

- Valspar Porch, Floor and Patio Paint – Base color: We used Mountain Smoke, a versatile neutral.
- Quality paint brush: For precise cutting-in around edges and corners.
- Paint roller with a 3/4″ nap roller cover: A thicker nap helps distribute paint evenly on textured concrete.
- Paint roller pole: For comfortable and efficient application across larger areas.
- Paint roller tray: To hold paint and evenly load your roller.
Stenciling Specific Supplies:
- Valspar Porch, Floor and Patio Paint – Stencil color: Our choice was Greyed for a subtle contrast.
- Cutting Edge Stencil in the pattern: Fine Line Herringbone: Choose a design that complements your style.
- Damp rag: Essential for quickly cleaning your stencil between applications.
- Painter’s tape (low tack): To secure the stencil and prevent shifting.
- Stencil brush or dense foam roller: For applying stencil paint with control and minimal bleed.
- Thin-tipped artist paint brush: For detailed touch-ups and filling in small gaps.
Time needed: 2 days (allowing for proper drying times)
Transform your dull concrete porch into a beautifully stenciled masterpiece with this step-by-step guide. Create a faux-tiled look using durable exterior paints and a high-quality stencil.
- Step 1: Thoroughly Prep Your Concrete Floor
Surface preparation is the most critical step for a lasting finish. Begin by power washing the entire concrete floor to remove all dirt, grime, loose paint, and any other contaminants. If a power washer isn’t available, scrub the floor vigorously with a stiff brush, hot water, and a heavy-duty detergent or TSP (Trisodium Phosphate) cleaner. Pay close attention to any oil stains or mildew. Rinse the floor meticulously until all soap residue is gone, then allow it to dry completely. This might take 24-48 hours depending on humidity and temperature. Any residual moisture can cause adhesion issues, so patience here is key. Ensure the surface is impeccably clean and bone dry before proceeding.

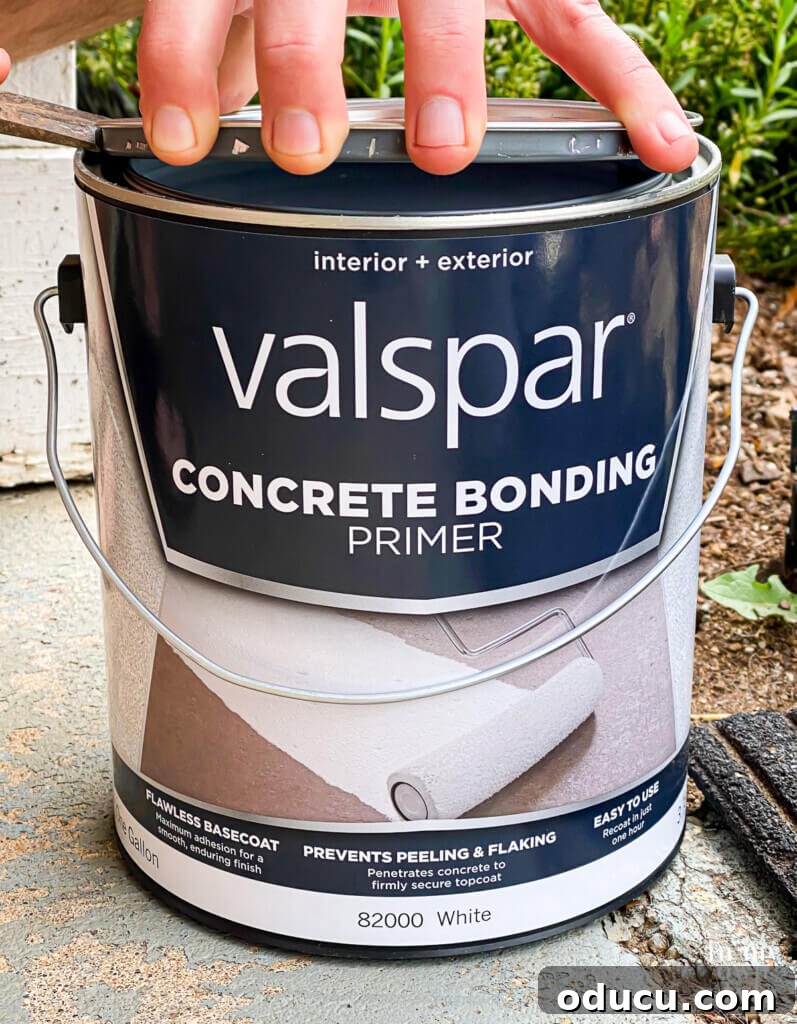

- Step 2: Apply a Bonding Concrete Primer

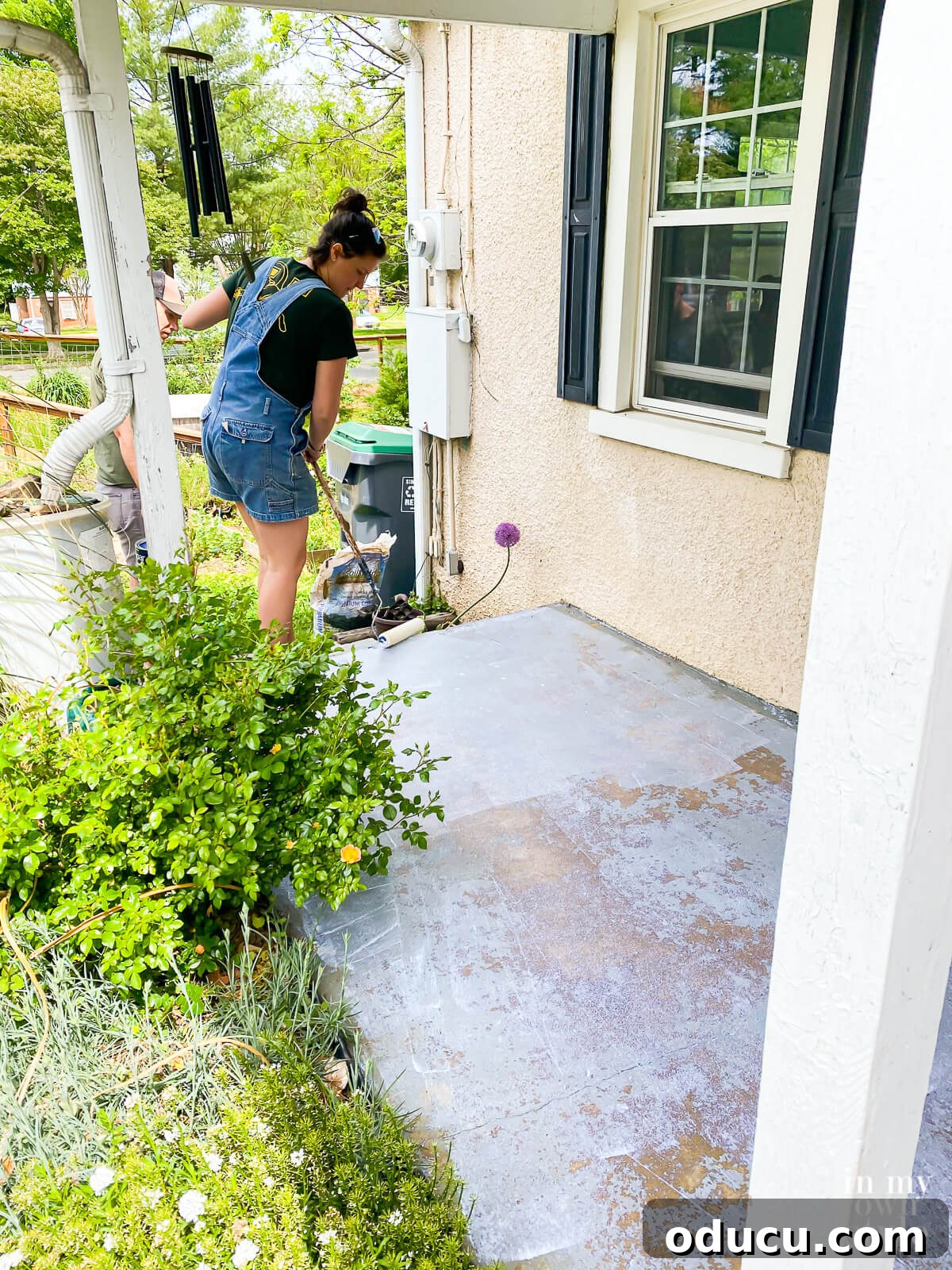

Do not skip this essential step! A high-quality concrete primer creates a strong bond between the porous concrete surface and your paint, significantly improving adhesion and durability. Using a roller, apply one even coat of Valspar Concrete Primer. The primer may appear white when wet but will dry clear, forming an ideal surface for your base coat. Allow the primer to dry for at least one hour, or as per the manufacturer’s instructions, before applying paint. Most primers require subsequent paint application within 1-4 hours for optimal chemical bonding, so plan your painting schedule accordingly.

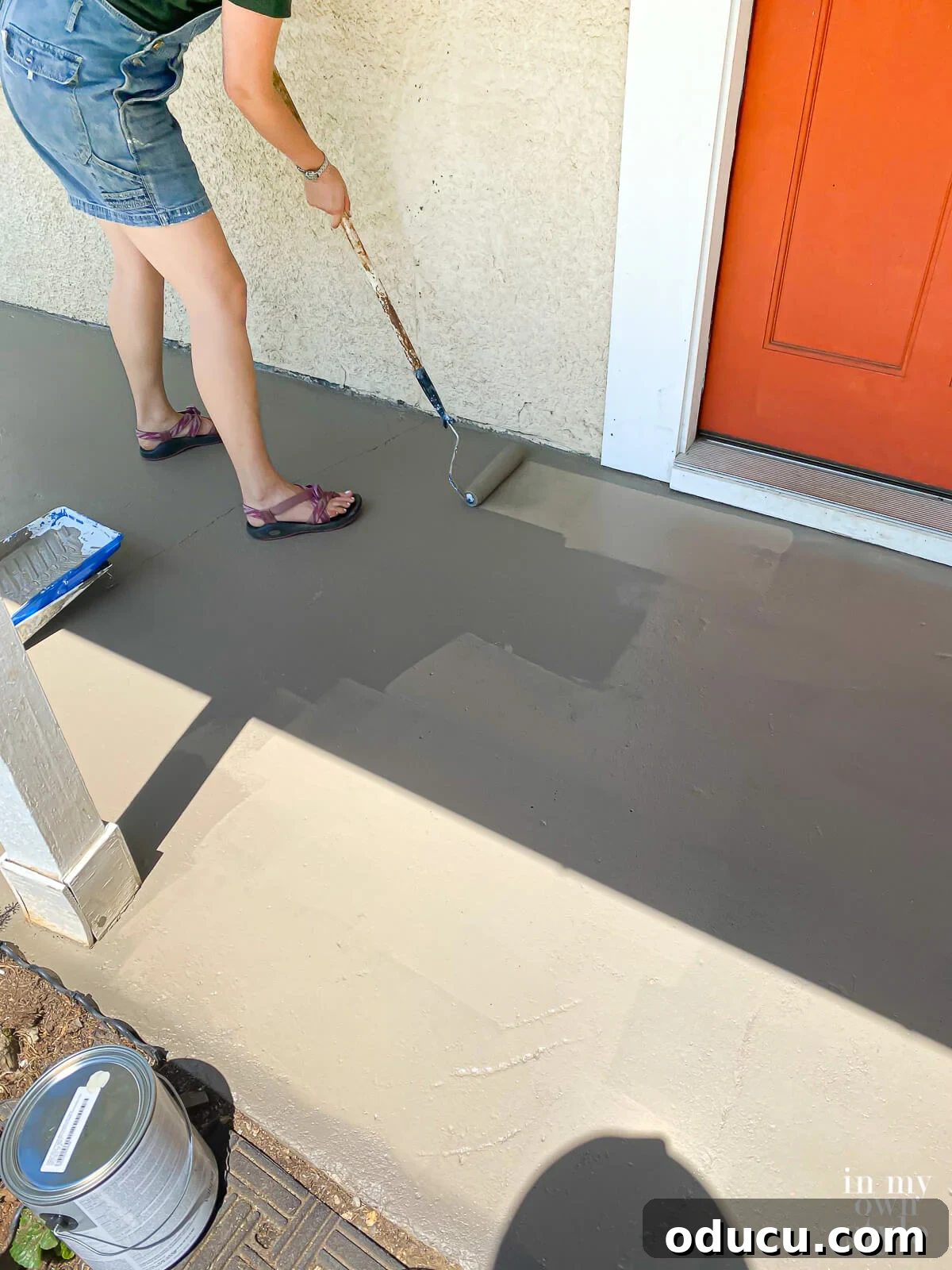

- Step 3: Roll On the Base Coat of Paint
For stenciling, you’ll need two distinct paint colors. Start with your chosen base color (e.g., Mountain Smoke). Using a 1/2″ nap paint roller, apply a thin, even first coat of base paint. Avoid applying paint too thickly, as this can lead to bubbling or uneven drying. Let this first coat dry completely according to the paint can instructions, typically 2-4 hours. Once dry, apply a second thin coat of the base color. This ensures full coverage and a consistent foundation. For best results and maximum durability, allow the second coat to dry for at least 4 hours, or ideally, overnight, before proceeding to stenciling. This curing time is crucial for the paint to harden properly.
- Step 4: Strategically Plan Your Stencil Layout

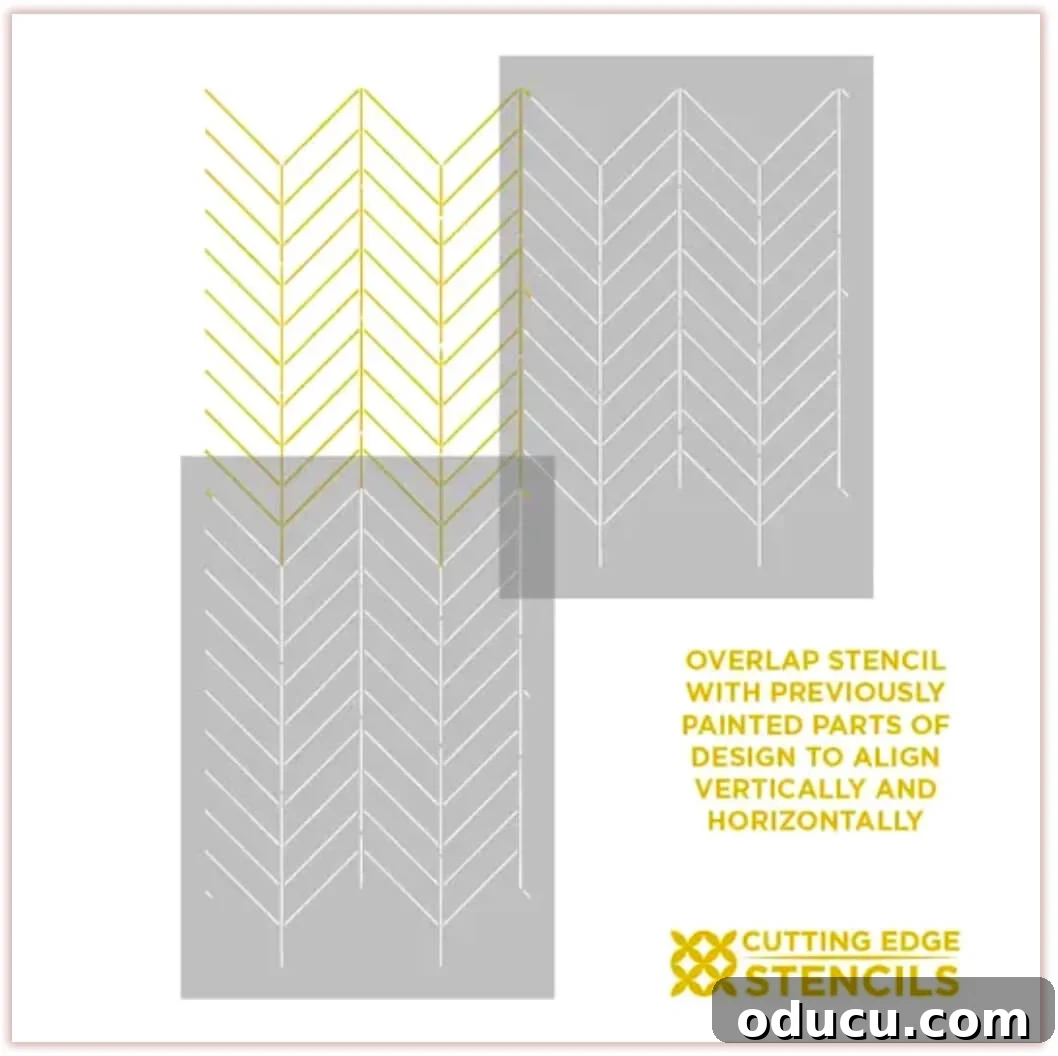

Before you even pick up your stencil, take the time to plan your layout. Refer to the specific directions provided with your stencil. The goal is to start stenciling from the most visible and prominent area of your porch, ensuring that full, unbroken stencil patterns are displayed where they will be seen most. This usually means starting from the entry point or the edge closest to your main viewing angle. Any partial or cut patterns should be reserved for less conspicuous areas, such as against a far wall or tucked away in a corner. Dry-fit your stencil in different positions to visualize the best starting point and how the pattern will repeat across the floor. This thoughtful planning will yield a professional and aesthetically pleasing result.
- Step 5: Secure the Stencil and Apply Paint

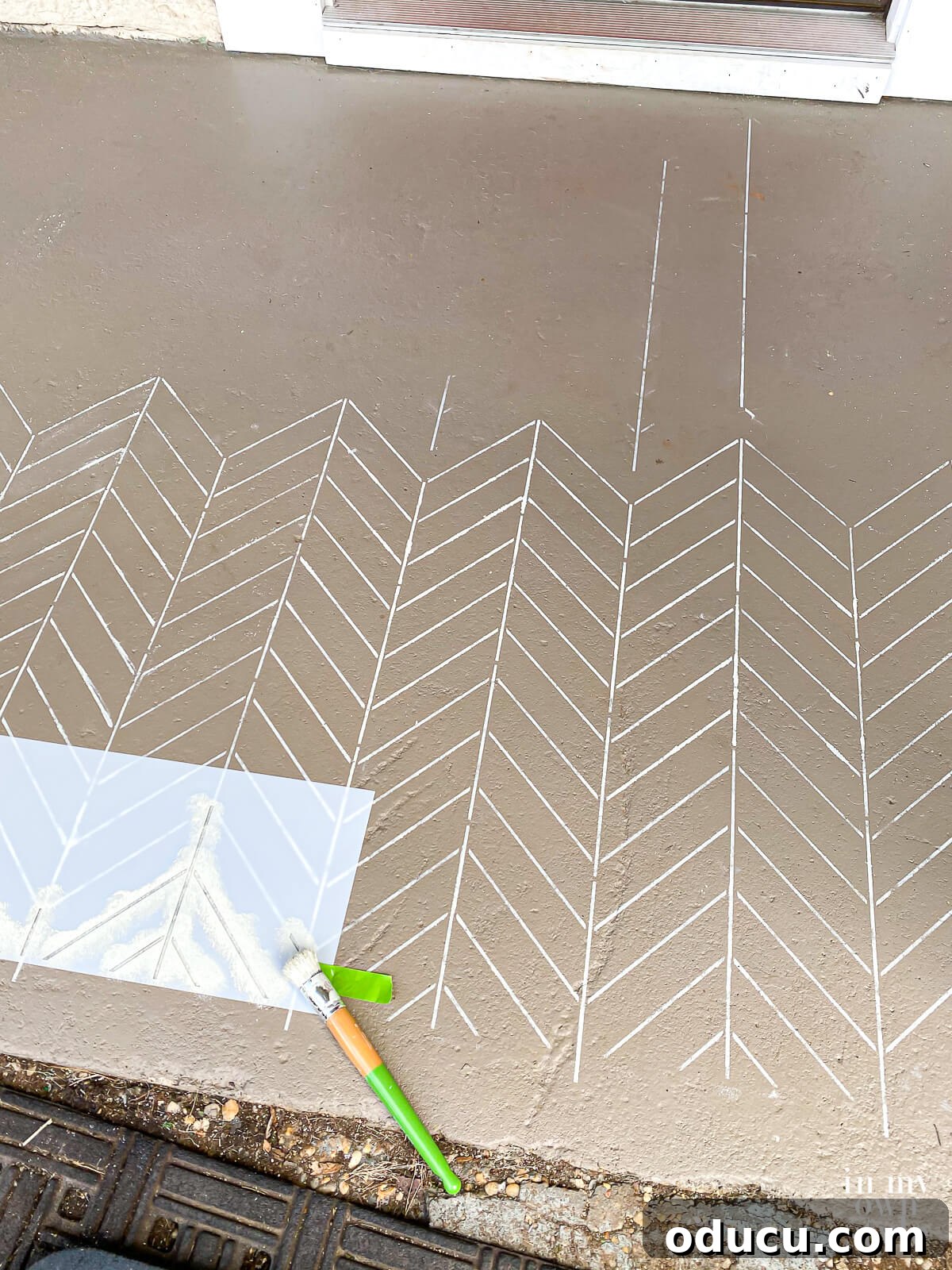

Once you’ve determined your starting point, carefully place the stencil on the floor. Use low-tack painter’s tape to secure the stencil, ensuring it’s perfectly aligned and won’t shift during application. Using either a dedicated stencil brush or a dense foam roller, dip it into your stencil color paint (e.g., Greyed). The crucial tip here is to remove almost all excess paint. Blot the brush or roller thoroughly on a paper towel-lined plate until it feels nearly dry. Then, gently pounce the brush or roll over the stencil pattern. The “less is more” rule is paramount: applying too much paint will cause it to bleed under the stencil, ruining the crisp lines. Work in light layers, building up the color gradually. After each application, carefully lift the stencil, clean any paint from the back with a damp rag, and reposition it to repeat the pattern, aligning it with the previously stenciled sections. Always ensure the stencil is clean before moving to the next section to prevent smudges.
- Step 6: Utilize the Edge Stencil for Perimeter Details

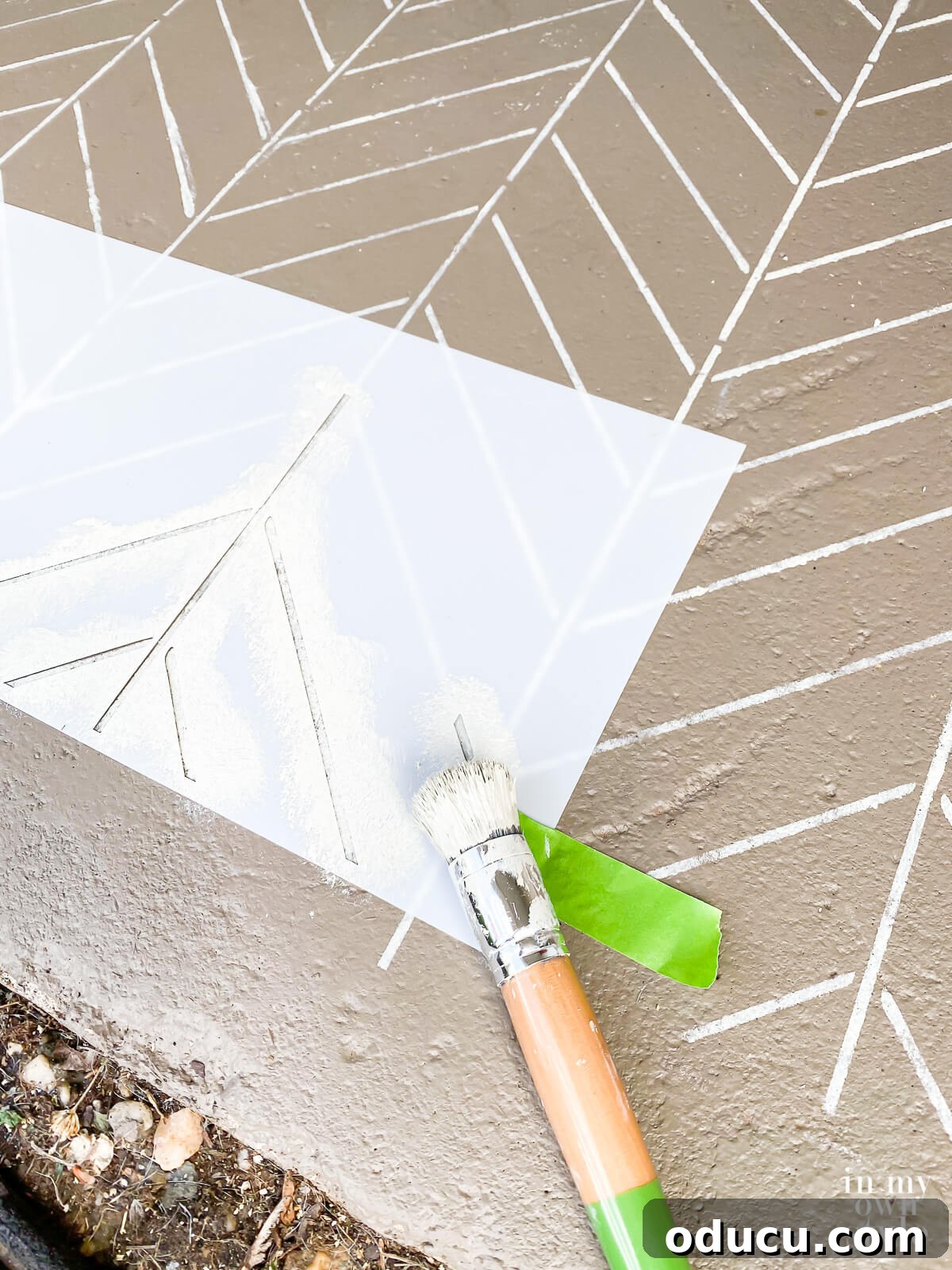

After stenciling the main body of the floor, you’ll inevitably encounter areas where the large stencil doesn’t fit, particularly along the edges and in tight corners. This is where the smaller, complementary edge stencil (often included with allover stencils) becomes invaluable. Carefully position the edge stencil in these areas and apply paint using the same “less is more” technique. This ensures a seamless continuation of your pattern right up to the very edges of the porch, giving your project a polished and professional finish. Don’t rush this step, as these perimeter details significantly contribute to the overall impression.
- Step 7: Perform Final Touch-Ups for Perfection
Once all stenciling is complete, step back and inspect your work. It’s common for minor imperfections to occur, such as faint lines or tiny areas where the paint didn’t fully transfer. This is where a thin, pointy-tipped artist’s paint brush becomes your best friend. Dip it carefully into your stencil color paint and meticulously hand-paint any lines or areas that require filling in or sharpening. You can also use this brush to gently extend lines off the edge of the floor if needed, creating the illusion that the pattern continues beyond the visible surface. This attention to detail elevates your project from DIY to professional quality.
- Step 8: Allow Ample Drying and Curing Time
The final and equally important step is to allow the painted and stenciled floor to dry and cure completely. Refer to the specific dry times and recoat instructions on your paint can label. While paint may feel dry to the touch within a few hours, it typically takes several days, or even weeks for some heavy-duty paints, to fully cure and achieve maximum hardness and durability. Avoid walking on the freshly painted surface or placing furniture back on it before the recommended curing time has elapsed. This patience ensures that your beautiful new porch floor will stand up to traffic and weather for many years, truly completing your stunning transformation. Your patience will be rewarded with a long-lasting, vibrant finish.
The Stunning After: A Transformed Outdoor Space

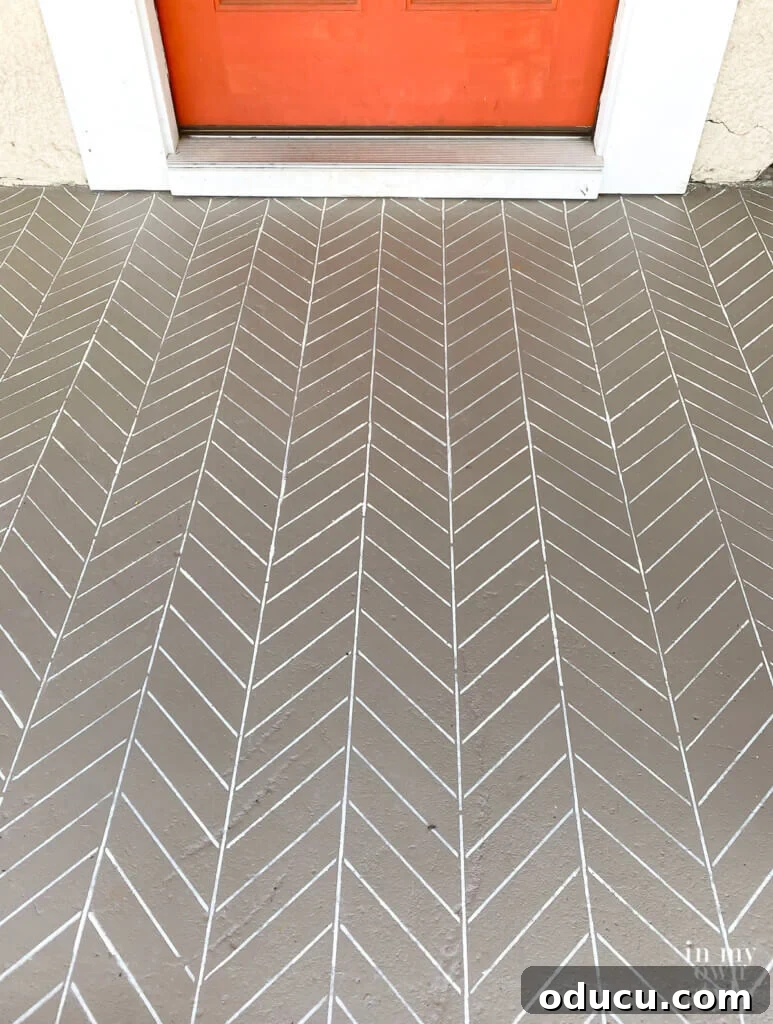

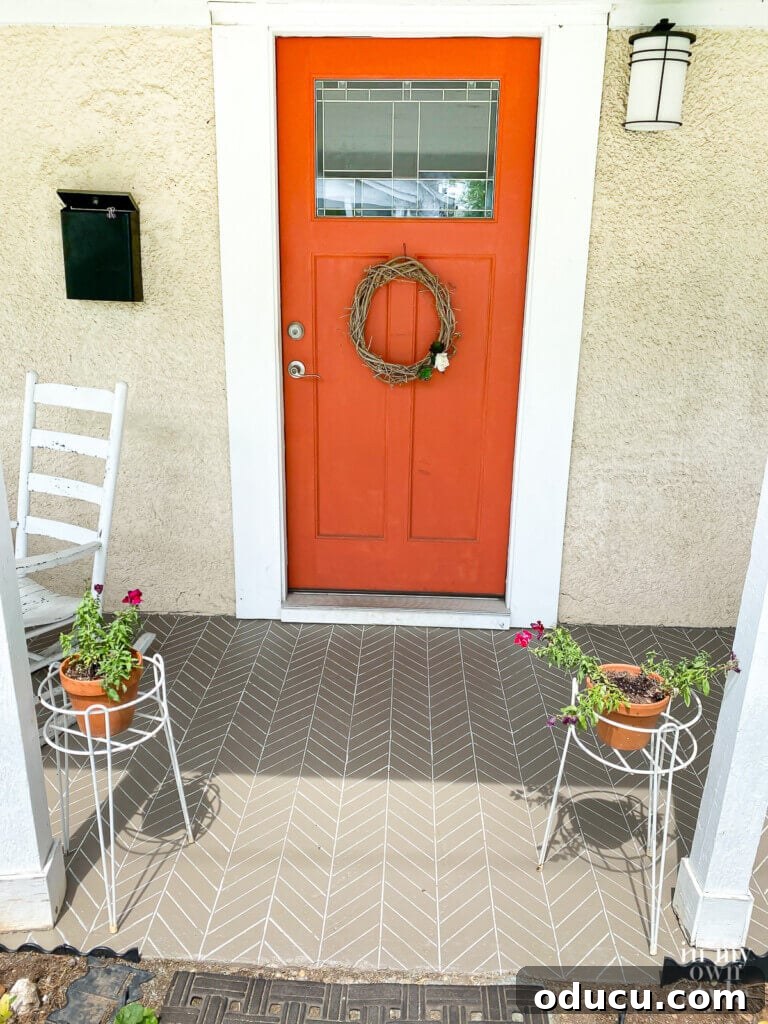

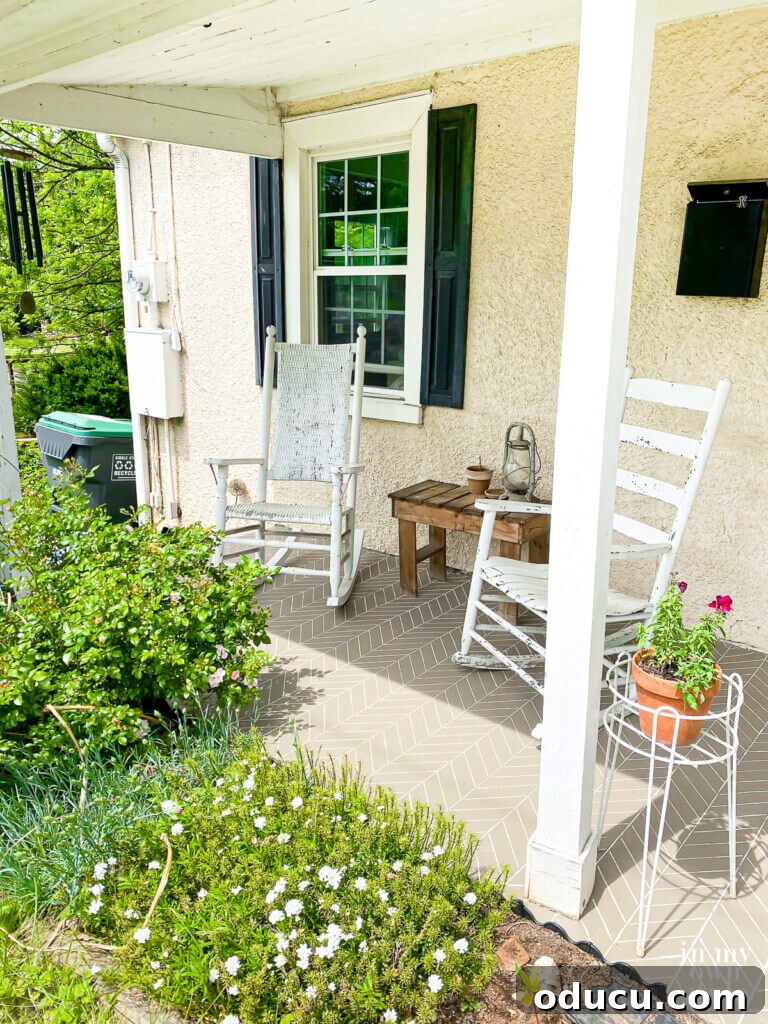

Floor – AFTER: Witness the Transformation
The transformation was nothing short of remarkable. What was once a drab, worn-out concrete slab is now a vibrant, stylish extension of the home, exuding charm and elegance. The carefully chosen “Mountain Smoke” base coat paired with the “Greyed” herringbone stencil pattern created a sophisticated faux-tiled effect that completely elevated the porch’s aesthetic. The subtle interplay of colors and the classic herringbone design lend an air of understated luxury, making the porch feel infinitely more inviting and visually appealing.
How Long Did It Take To Paint and Stencil the Floor?
Despite the dramatic results, the entire painting and stenciling project was completed efficiently over a two-day period. This timeframe accounts for all necessary drying and curing times between coats, which are crucial for ensuring the durability and longevity of the finish. The hands-on work itself was spread out, making it a manageable weekend DIY project for dedicated homeowners.
One of the significant advantages of using high-quality porch and floor paint is that it typically does not require an additional sealer. These specialized paints are formulated with built-in protective properties that make them resistant to moisture, abrasion, and UV damage, simplifying the finishing process and reducing overall project time. This makes the painted and stenciled concrete floor a low-maintenance yet high-impact solution for outdoor spaces.

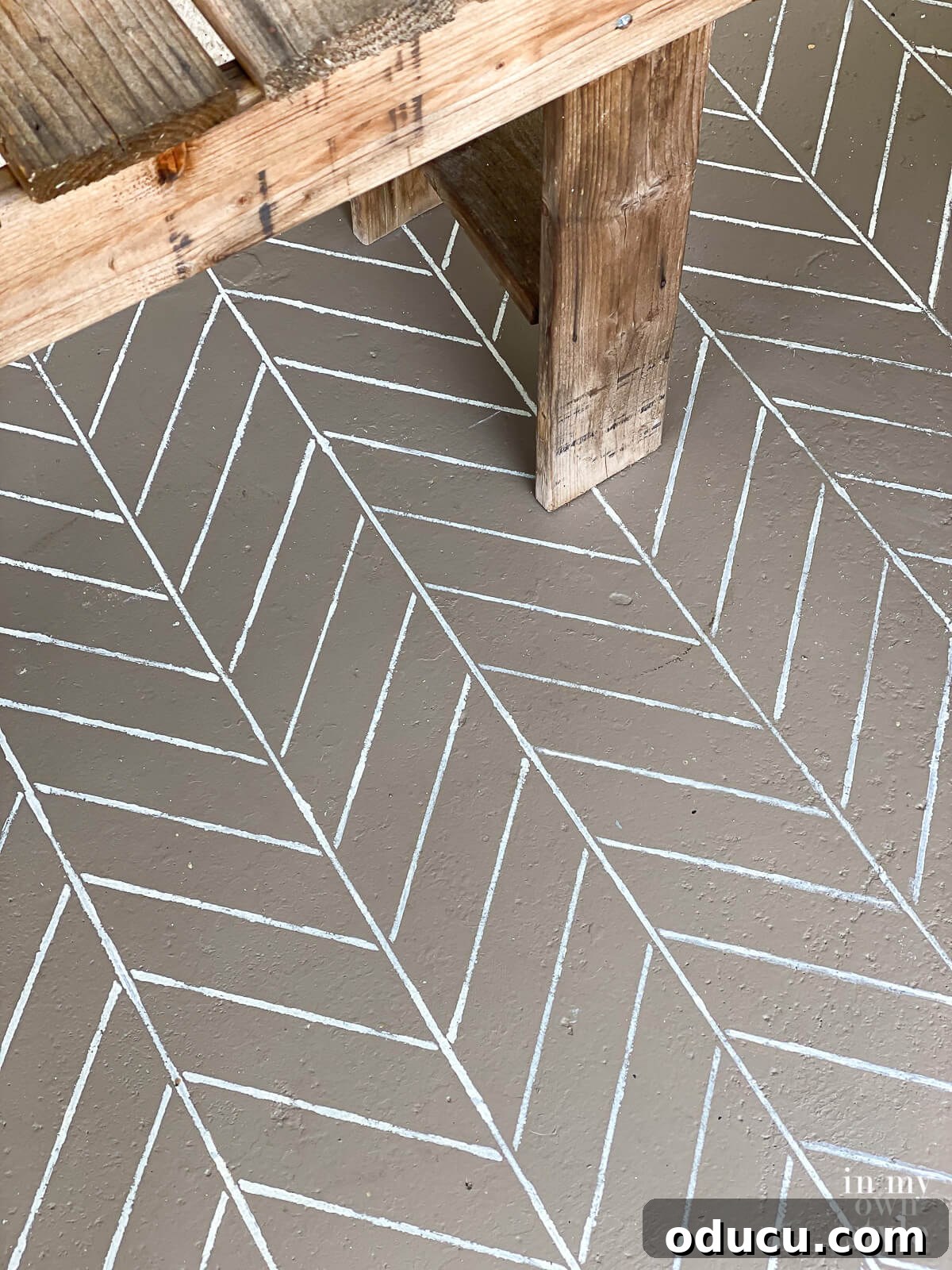

The resulting pattern is beautifully subtle, offering just the right amount of visual interest without overwhelming the space. The delicate “Greyed” lines against the “Mountain Smoke” base create a sophisticated texture that mimics the look of individual tiles, transforming a utilitarian concrete slab into an inviting and stylish outdoor room. This project proves that with a little creativity and the right materials, you can achieve stunning, designer-quality results on a DIY budget.
Unleash Your Creativity with Stenciling
If this project has inspired you to reimagine your own floors, walls, or even tabletops, know that the possibilities with stenciling are virtually endless. From intricate geometric patterns to natural motifs, there are dozens of allover stencil designs available to perfectly complement your personal decorating style and home aesthetic. Stenciling offers an incredible opportunity to infuse your spaces with bespoke charm and character, making a significant impact without the need for extensive renovation or specialized skills.
Explore a vast collection of exquisite stencil designs and gather more expert how-to stencil tips to help you embark on your next creative project. Check out all the beautiful designs available from trusted suppliers like Cutting Edge Stencils today!

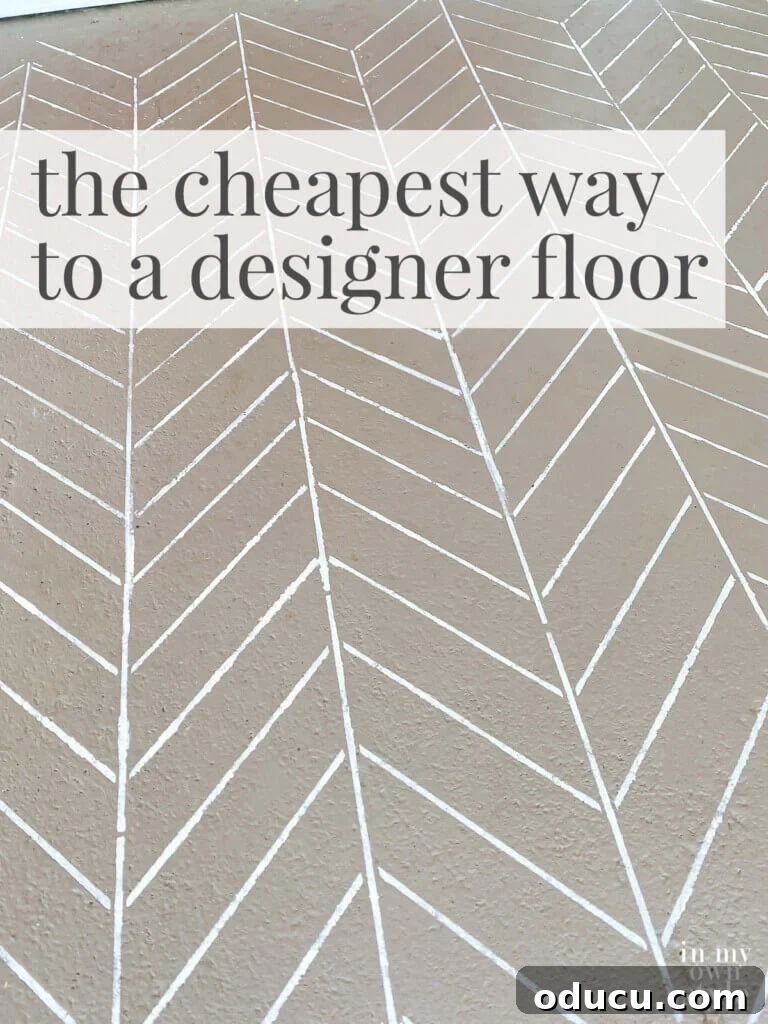

Why Choose Stenciled Concrete? An Affordable Designer Look
Opting for a painted and stenciled concrete floor is an ingenious way to achieve a high-end, custom look without the prohibitive cost associated with traditional tiling or installing new flooring. Whether you’re aiming for the rustic charm of brick, the sophisticated texture of natural stone, or the modern elegance of geometric tiles, a stencil combined with durable floor paint can perfectly emulate these effects. This method not only saves you money on materials and labor but also offers the satisfaction of a DIY project, allowing you to personalize your space down to the last detail. It’s truly the cheapest way to attain a designer porch floor that will impress guests and provide lasting enjoyment.
